IL-AG5-22P-D3T2

JAE Electronics
In Stock: 163

Can ship immediately

Pricing:
  • 1$2.45
  • 10$2.22315
  • 100$1.90556
  • 500$1.58796
  • 1,000$1.36111
  • 5,000$1.20685

Quote It

Technical Details

  • Series:IL-AG5
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.098" (2.50mm)
  • Number of Positions:22
  • Number of Rows:2
  • Row Spacing - Mating:0.118" (3.00mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.331" (8.40mm)



  • Contact Length - Post:0.138" (3.50mm)
  • Overall Contact Length:0.594" (15.09mm)
  • Insulation Height:0.717" (18.20mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polybutylene Terephthalate (PBT)
  • Features:-
  • Operating Temperature:-40°C ~ 85°C
  • Ingress Protection:-
  • Material Flammability Rating:-
  • Insulation Color:Green
  • Current Rating (Amps):3A per Contact
  • Voltage Rating:-

Related Products


B12P-HL-A(LF)(SN)

CONN HEADER VERT 12POS 3.96MM

  • 1: $2.43000
  • 10: $2.20300
  • 100: $1.88830

XG8V-3631

CONN HEADER VERT 36POS 2.54MM

XG8V-3631 Datasheet
  • 1: $2.44000
  • 10: $2.21891
  • 100: $1.90160

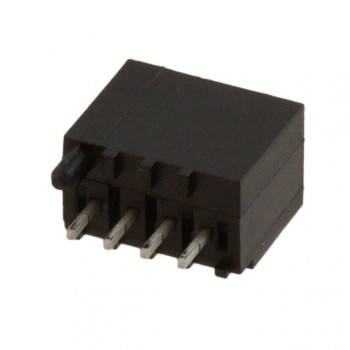

2-644487-4

CONN HEADER VERT 4POS 2.54MM

2-644487-4 Datasheet
  • 1: $2.45000
  • 10: $2.22133
  • 100: $1.90396

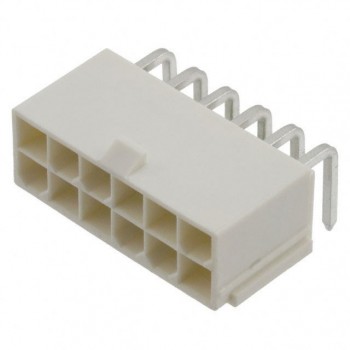

0874271202

CONN HEADER R/A 12POS 4.2MM

0874271202 Datasheet
  • 1: $2.48000
  • 10: $2.24998
  • 100: $1.92815

09195147324

CONN HEADER VERT 14POS 2.54MM

09195147324 Datasheet
  • 1: $2.45000
  • 10: $2.22506
  • 25: $2.08883

MX34032UF2

CONN HEADER VERT 32POS 2.2MM

MX34032UF2 Datasheet
  • 1: $2.46000
  • 10: $2.23000
  • 25: $2.09320

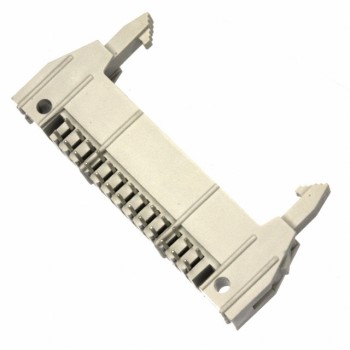

71922-126LF

CONN HEADER R/A 26POS 2.54MM

71922-126LF Datasheet
  • 1: $2.46000
  • 18: $2.23664
  • 108: $1.91714

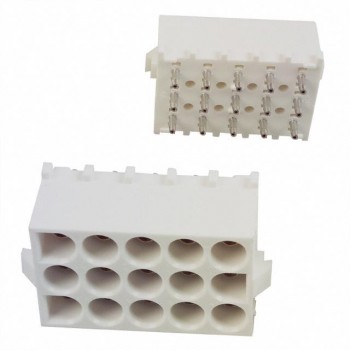

350714-1

CONN HEADER VERT 15POS 6.35MM

350714-1 Datasheet
  • 1: $2.46000
  • 10: $2.25155
  • 100: $1.95407

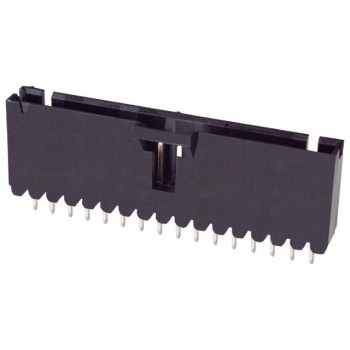

1-103638-5

CONN HEADER VERT 16POS 2.54MM

1-103638-5 Datasheet
  • 1: $2.47000
  • 13: $2.25796
  • 104: $1.95985

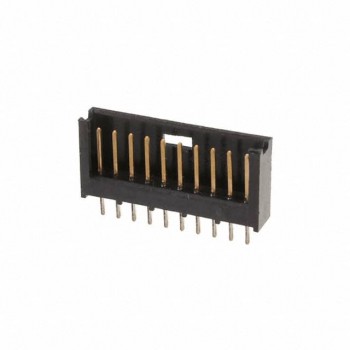

280374-2
