0705410075

Woodhead - Molex
In Stock: 832

Can ship immediately

Pricing:
  • 1$2.48
  • 10$2.254
  • 100$1.932
  • 500$1.61
  • 1,000$1.38
  • 5,000$1.2236

Quote It

Technical Details

  • Series:SL 70541
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:6
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:0.240" (6.10mm)



  • Contact Length - Post:0.130" (3.30mm)
  • Overall Contact Length:0.470" (11.94mm)
  • Insulation Height:0.465" (11.80mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Polyester, Glass Filled
  • Features:Board Lock
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:250V

Related Products


09185147914

CONN HEADER VERT 14POS 2.54MM

09185147914 Datasheet
  • 1: $2.51000
  • 10: $2.28096
  • 25: $2.14103

0901361210

CONN HEADER VERT 10POS 2.54MM

  • 1: $2.51000

0436500701

CONN HEADER R/A 7POS 3MM

  • 1: $2.51000

6-103635-0

CONN HEADER R/A 11POS 2.54MM

6-103635-0 Datasheet
  • 1: $2.48000
  • 17: $2.25183
  • 102: $1.93003

IL-AG5-18P-D3L2

CONN HEADER R/A 18POS 2.5MM

IL-AG5-18P-D3L2 Datasheet
  • 1: $2.48000
  • 10: $2.25400
  • 25: $2.11600

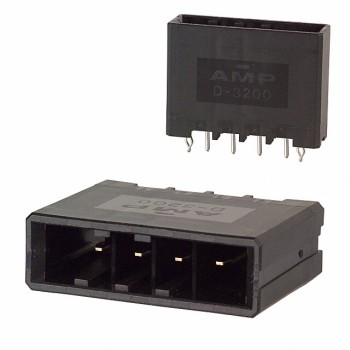

2-917338-2

CONN HEADER VERT 4POS 5.08MM

2-917338-2 Datasheet
  • 1: $2.48000
  • 10: $2.25332
  • 100: $1.93103

09185105904

CONN HEADER VERT 10POS 2.54MM

09185105904 Datasheet
  • 1: $2.48000
  • 10: $2.25037
  • 25: $2.11259

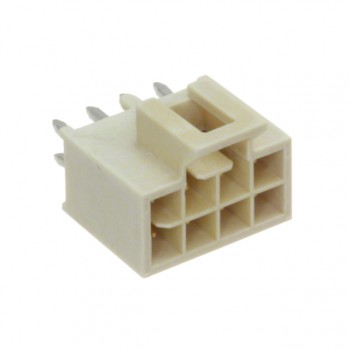

1053102208

CONN HEADER VERT 8POS 2.5MM

1053102208 Datasheet
  • 1: $2.51000
  • 10: $2.27823
  • 156: $1.95238

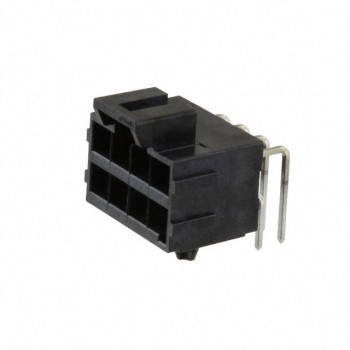

1723161208

CONN HEADER R/A 8POS 3.5MM

1723161208 Datasheet
  • 1: $2.51000
  • 10: $2.40782
  • 100: $2.00641

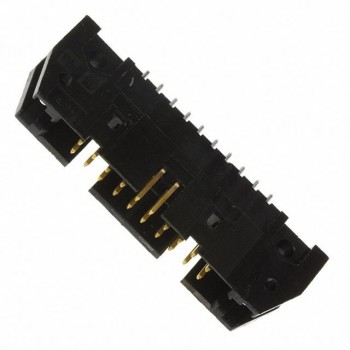

102154-4
