LHB-10-SA2

Adam Tech
In Stock: 625

Can ship immediately

Pricing:
  • 1$0.71
  • 10$0.66943
  • 100$0.51323
  • 500$0.44629
  • 1,000$0.36819
  • 5,000$0.32356
  • 10,000$0.30124

Quote It

Technical Details

  • Series:LHB
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.156" (3.96mm)
  • Number of Positions:10
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.413" (10.50mm)



  • Contact Length - Post:0.150" (3.81mm)
  • Overall Contact Length:0.689" (17.50mm)
  • Insulation Height:0.126" (3.20mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA66), Nylon 6/6
  • Features:-
  • Operating Temperature:-25°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-2
  • Insulation Color:White
  • Current Rating (Amps):7A
  • Voltage Rating:250VAC

Related Products


125SH-A-06-TS

CONN HEADER VERT 6POS 1.25MM

  • 1: $0.71000
  • 10: $0.66943
  • 100: $0.51323

125SH-A-06-TR

CONN HEADER R/A 6POS 1.25MM

  • 1: $0.71000
  • 10: $0.66943
  • 100: $0.51323

2PH1R-18-UA

CONN HEADER R/A 18POS 2MM

  • 1: $0.71000
  • 10: $0.66943
  • 100: $0.51323

125SH-A-06-TS-SMT

CONN HEADER SMD 6POS 1.25MM

  • 1: $0.71000
  • 10: $0.66943
  • 100: $0.51323

125SH-A-06-TR-SMT

CONN HEADER SMD R/A 6POS 1.25MM

  • 1: $0.71000
  • 10: $0.66943
  • 100: $0.51323

68016-112HLF

CONN HEADER R/A 12POS 2.54MM

68016-112HLF Datasheet
  • 1: $0.71000
  • 10: $0.67213
  • 100: $0.52559

3-1971906-6

CONN HEADER VERT 12POS 3.3MM

3-1971906-6 Datasheet
  • 1: $0.72000
  • 10: $0.67639
  • 25: $0.60845

DF11Z-4DP-2V(27)

CONN HEADER SMD 4POS 2MM

DF11Z-4DP-2V(27) Datasheet
  • 1: $1.16000
  • 500: $0.68400
  • 1000: $0.60800

HPH1-B-13-UA

CONN HEADER VERT 13POS 1.27MM

  • 1: $0.73000
  • 10: $0.63800
  • 100: $0.55070

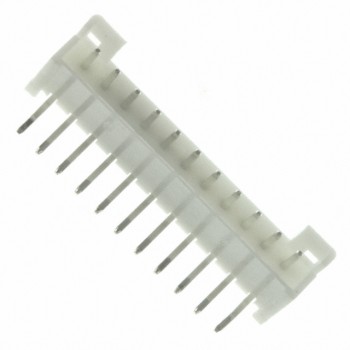

1-440055-1
