ATM15-08PA-BM03

Tuchel / Amphenol
In Stock: 98,380

Can ship immediately

Pricing:
  • 1$11.41
  • 20$10.44898
  • 40$10.20822
  • 60$9.48583
  • 100$9.00436
  • 260$8.28208
  • 500$7.80057
  • 1,000$7.22275

Quote It

Technical Details

  • Series:BoardLock™ ATM
  • Package:Tray
  • Part Status:Active
  • Connector Type:Receptacle
  • Contact Type:Male Pin
  • Pitch - Mating:-
  • Number of Positions:8
  • Number of Rows:2
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:-



  • Contact Length - Post:0.120" (3.05mm)
  • Overall Contact Length:-
  • Insulation Height:1.189" (30.20mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Tin
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:Board Guide, Mating Flange, Mounting Flange
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:IP67
  • Material Flammability Rating:-
  • Insulation Color:Gray
  • Current Rating (Amps):7.5A
  • Voltage Rating:250V

Related Products


ATM13-4P-BM04

CONN HEADER R/A 4POS

  • 1: $11.41000
  • 10: $10.44892
  • 30: $10.20795

207398-6

CONN HEADER R/A 10POS 5MM

207398-6 Datasheet
  • 1: $11.44000
  • 14: $10.93884
  • 105: $9.19844

G125-MH12605L5P

CONN HEADER R/A 26POS 1.25MM

G125-MH12605L5P Datasheet
  • 1: $11.44000
  • 10: $10.94684
  • 100: $9.20513

6-102692-8

CONN HEADER VERT 86POS 2.54MM

6-102692-8 Datasheet
  • 1: $11.51000
  • 10: $11.01349
  • 100: $9.26134

ATM13-6P-BM04

CONN HEADER R/A 6POS

  • 1: $11.64000
  • 10: $10.86810
  • 30: $9.84299

1-5499786-2

CONN HEADER R/A 64POS 2.54MM

1-5499786-2 Datasheet
  • 1: $11.78000
  • 10: $11.26649
  • 100: $9.47386

ATM15-12PB-BM03

CONN HEADER VERT 12POS

  • 1: $12.10000
  • 20: $11.02456
  • 40: $10.60538

929667-04-36-EU

CONN HEADER R/A 72POS 2.54MM

929667-04-36-EU Datasheet
  • 1: $12.11000
  • 10: $11.00800
  • 100: $9.35680

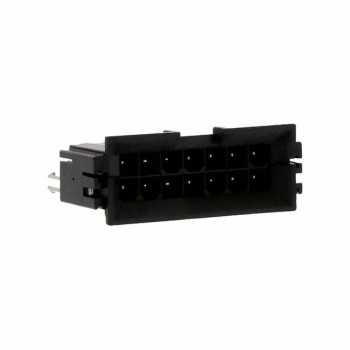

0440680105
