In Stock: 909

Can ship immediately

Pricing:
  • 1$0.74
  • 740$0.47345

Quote It

Technical Details

  • Series:BERGSTIK®
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:8
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.230" (5.84mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold or Gold, GXT™
  • Contact Finish Thickness - Mating:15.0µin (0.38µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:-
  • Features:Pick and Place
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


DF13-7P-1.25V(75)

CONN HEADER SMD 7POS 1.25MM

DF13-7P-1.25V(75) Datasheet
  • 1: $0.54000
  • 10: $0.50824
  • 100: $0.38965

DF3EA-2P-2V(54)

CONN HEADER SMD 2POS 2MM

DF3EA-2P-2V(54) Datasheet
  • 1: $0.54000
  • 10: $0.50824
  • 25: $0.45741

77313-124-08LF

CONN HEADER VERT 8POS 2.54MM

77313-124-08LF Datasheet
  • 1: $0.54000
  • 500: $0.31120

77311-101-09LF

CONN HEADER VERT 9POS 2.54MM

77311-101-09LF Datasheet
  • 1: $0.55000
  • 500: $0.31820

69192-110H

CONN HEADER VERT 10POS 2.54MM

69192-110H Datasheet
  • 1: $0.55000
  • 400: $0.36318

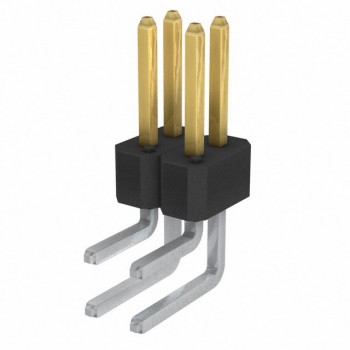

77317-104-04LF

CONN HEADER R/A 4POS 2.54MM

77317-104-04LF Datasheet
  • 1: $0.56000
  • 2000: $0.25984

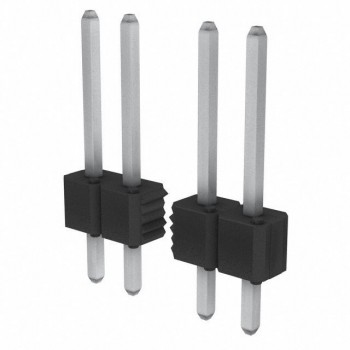

54101-T30-08

CONN HEADER VERT 8POS 2.54MM

54101-T30-08 Datasheet
  • 1: $0.56000
  • 1000: $0.29859

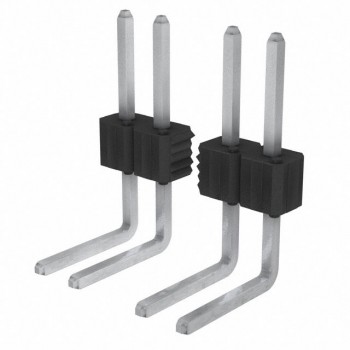

68498-411HLF

CONN HEADER R/A 11POS 2.54MM

68498-411HLF Datasheet
  • 1: $0.56000
  • 2800: $0.27608

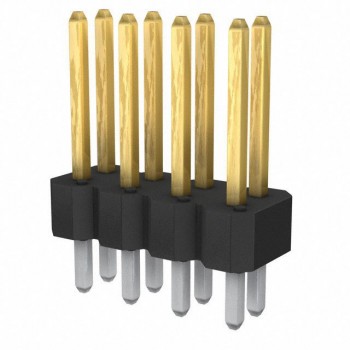

77313-122-08LF
