929667-04-02-I

3M
In Stock: 729

Can ship immediately

Pricing:
  • 1$1.14
  • 10$1.001
  • 25$0.942
  • 50$0.9028
  • 100$0.8636
  • 250$0.78508
  • 500$0.70656

Quote It

Technical Details

  • Series:929
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:4
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.235" (5.97mm)



  • Contact Length - Post:0.145" (3.68mm)
  • Overall Contact Length:-
  • Insulation Height:0.215" (5.45mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Gold
  • Contact Material:Copper Alloy
  • Insulation Material:Polybutylene Terephthalate (PBT), Polyester, Glass Filled
  • Features:-
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):2.5A
  • Voltage Rating:-

Related Products


BM10B-ZPDSS-TF(LF)(SN)

CONN HEADER SMD 10POS 1.5MM

BM10B-ZPDSS-TF(LF)(SN) Datasheet
  • 1: $1.14000
  • 1000: $0.62894
  • 2000: $0.58964

BM12B-NSHSS-TBT (LF)(SN)

CONN HEADER SMD 12POS 1MM

BM12B-NSHSS-TBT (LF)(SN) Datasheet
  • 1: $1.14000
  • 1000: $0.63131
  • 2000: $0.59186

929745-02-03-EU

CONN HEADER R/A 6POS 2.54MM

929745-02-03-EU Datasheet
  • 1: $1.14000
  • 10: $1.00000
  • 25: $0.94080

9-103765-0-05

CONN HEADER R/A 5POS 2.54MM

9-103765-0-05 Datasheet
  • 1: $1.14000
  • 10: $0.99777
  • 25: $0.93893

620303124022

CONN HEADER SMD 3POS 2MM

  • 1: $1.14000
  • 750: $0.70640
  • 1500: $0.64840

9-146278-0-12

CONN HEADER VERT 12POS 2.54MM

9-146278-0-12 Datasheet
  • 1: $1.14000
  • 10: $0.99911
  • 25: $0.93996

929835-01-15

CONN HEADER R/A 15POS 2.54MM

929835-01-15 Datasheet
  • 1: $1.14000
  • 10: $1.00000
  • 25: $0.94080

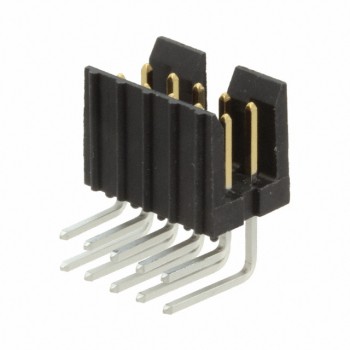

78207-110
