929665-02-13-I

3M
In Stock: 1,628

Can ship immediately

Pricing:
  • 1$4.95
  • 10$4.751
  • 25$4.3548
  • 50$4.1568
  • 100$3.9589
  • 250$3.46408
  • 500$3.3651

Quote It

Technical Details

  • Series:929
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:26
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.235" (5.97mm)



  • Contact Length - Post:0.210" (5.33mm)
  • Overall Contact Length:0.545" (13.84mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Gold
  • Contact Material:Copper Alloy
  • Insulation Material:Polybutylene Terephthalate (PBT), Polyester, Glass Filled
  • Features:-
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):2.5A
  • Voltage Rating:-

Related Products


HIF3BAF-30PA-2.54DS(71)

CONN HEADER R/A 30POS 2.54MM

HIF3BAF-30PA-2.54DS(71) Datasheet
  • 1: $4.95000
  • 10: $4.74664
  • 100: $3.95553

HIF6-26PA-1.27DS(71)

CONN HEADER R/A 26POS 1.27MM

HIF6-26PA-1.27DS(71) Datasheet
  • 1: $4.95000
  • 10: $4.74580
  • 180: $3.95483

335-40-114-00-160000

CONN HEADER VERT 14POS 2.54MM

335-40-114-00-160000 Datasheet
  • 1: $4.98000
  • 10: $4.78126
  • 25: $4.38286

PBC12DBDN

CONN HEADER R/A 24POS 2.54MM

PBC12DBDN Datasheet
  • 1: $4.98000
  • 10: $4.45500
  • 100: $3.66920

4-102978-0

CONN HEADER R/A 40POS 2.54MM

4-102978-0 Datasheet
  • 1: $4.99000
  • 10: $4.78607

961224-5500-AR-PR

CONN HEADER SMD R/A 24POS 2.54MM

961224-5500-AR-PR Datasheet
  • 1: $5.00000

GT3B-20DP-2.5DSA(70)

CONN HEADER VERT 20POS 2.5MM

GT3B-20DP-2.5DSA(70) Datasheet
  • 1: $5.03000
  • 10: $4.82880
  • 25: $4.42640

4-103783-0-12

CONN HEADER VERT 24POS 2.54MM

4-103783-0-12 Datasheet
  • 1: $5.05000
  • 10: $4.85715
  • 25: $4.45275

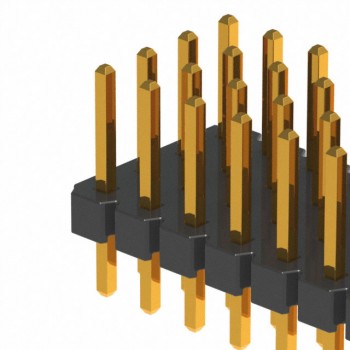

NRPN124RCCN-RC
