HIF3BAF-40PA-2.54DSA(71)

Hirose
In Stock: 129

Can ship immediately

Pricing:
  • 1$5.33
  • 80$4.47342
  • 160$4.26041

Quote It

Technical Details

  • Series:HIF3B
  • Package:Tray
  • Part Status:Obsolete
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:40
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Latch Lock/Eject Hooks
  • Contact Length - Mating:0.236" (6.00mm)



  • Contact Length - Post:0.130" (3.30mm)
  • Overall Contact Length:0.657" (16.70mm)
  • Insulation Height:0.701" (17.80mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:8.00µin (0.203µm)
  • Contact Finish - Post:Tin
  • Contact Material:Brass
  • Insulation Material:Polybutylene Terephthalate (PBT)
  • Features:Keying Slot
  • Operating Temperature:-55°C ~ 85°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):1A
  • Voltage Rating:200V

Related Products


HIF6-40PA-1.27DS(71)

CONN HEADER R/A 40POS 1.27MM

HIF6-40PA-1.27DS(71) Datasheet
  • 1: $5.35000
  • 10: $5.13600
  • 140: $4.28000

0901220772

CONN HEADER R/A 24POS 2.54MM

  • 1: $5.37000

0416710034

CONN HEADER VERT 12POS 3.96MM

0416710034 Datasheet
  • 1: $5.40000
  • 10: $5.18883
  • 25: $4.75620

HIF3BAF-34PA-2.54DS(71)

CONN HEADER R/A 34POS 2.54MM

HIF3BAF-34PA-2.54DS(71) Datasheet
  • 1: $5.40000
  • 10: $5.18400
  • 100: $4.32000

HIF3BA-40PA-2.54DS(71)

CONN HEADER R/A 40POS 2.54MM

HIF3BA-40PA-2.54DS(71) Datasheet
  • 1: $5.40000
  • 10: $5.18400

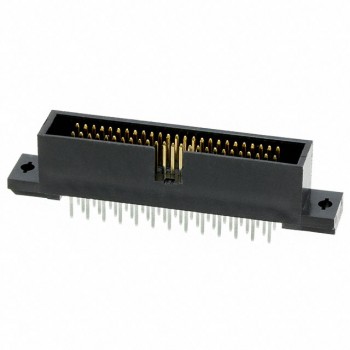

HIF6B-50PA-1.27DSA(71)
