68001-104HLF
Storage & Server IO (Amphenol ICC)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 4POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 68001-104HLF Datasheet
-
ECAD Model
- Share
In Stock: 188
Can ship immediately
Pricing:
- 1$0.35
- 10$0.32922
- 100$0.23024
- 500$0.19732
- 1,000$0.16443
- 5,000$0.14093
- 10,000$0.13154
Quote It
Technical Details
- Series:BERGSTIK® II
- Package:Bag
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:4
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Unshrouded
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.230" (5.84mm)
- Contact Length - Post:0.120" (3.05mm)
- Overall Contact Length:0.450" (11.43mm)
- Insulation Height:0.100" (2.54mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold or Gold, GXT™
- Contact Finish Thickness - Mating:30.0µin (0.76µm)
- Contact Finish - Post:-
- Contact Material:Phosphor Bronze
- Insulation Material:-
- Features:-
- Operating Temperature:-
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:-
Related Products
CONN HEADER VERT 5POS 2.5MM
- 1: $0.37000
- 10: $0.34900
- 100: $0.24410

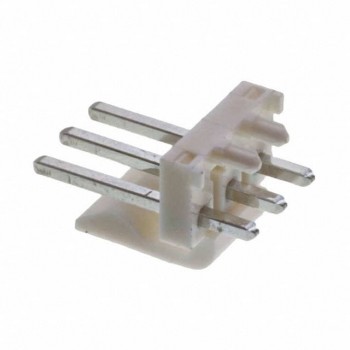

CONN HEADER VERT 3POS 3.96MM
