008263021200003+

KYOCERA Corporation
In Stock: 140

Can ship immediately

Pricing:
  • 1$0.17361

Quote It

Technical Details

  • Series:8263, Kyocera
  • Package:Bag
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.098" (2.50mm)
  • Number of Positions:2
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 1 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.217" (5.50mm)



  • Contact Length - Post:0.142" (3.60mm)
  • Overall Contact Length:0.437" (11.10mm)
  • Insulation Height:0.346" (8.80mm)
  • Contact Shape:Square
  • Contact Finish - Mating:-
  • Contact Finish Thickness - Mating:-
  • Contact Finish - Post:-
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-20°C ~ 85°C
  • Ingress Protection:-
  • Material Flammability Rating:-
  • Insulation Color:Yellow
  • Current Rating (Amps):3A per Contact
  • Voltage Rating:250VDC

Related Products


78229-204HLF

CONN HEADER VERT 4POS 2.54MM

78229-204HLF Datasheet
  • 1: $0.17364

54102-T0803LF

BERGSTRIP 0.100" HDR

  • 1: $0.17364

892-70-006-10-001101

CONN HEADER VERT 6POS 2.54MM

892-70-006-10-001101 Datasheet
  • 1: $0.17376
  • 3000: $0.15739

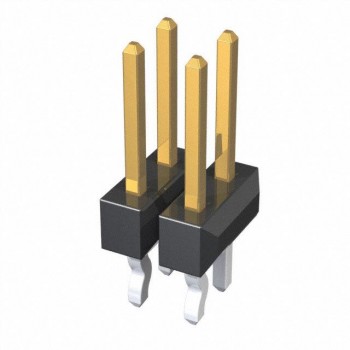

0702871196

CONN HEADER VERT 4POS 2.54MM

0702871196 Datasheet
  • 1: $0.17388
  • 10000: $0.17388

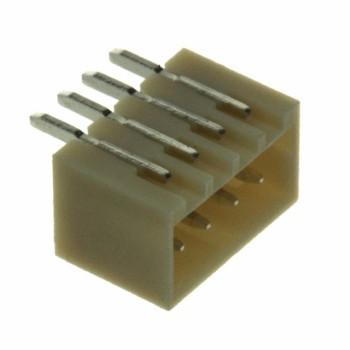

1775444-4
