In Stock: 155

Can ship immediately

Pricing:
  • 1$0.2944
  • 100$0.2944

Quote It

Technical Details

  • Series:-
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header, Breakaway
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:4
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.230" (5.84mm)



  • Contact Length - Post:0.120" (3.05mm)
  • Overall Contact Length:0.450" (11.43mm)
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Tin
  • Contact Material:Phosphor Bronze
  • Insulation Material:Polyamide (PA9T), Nylon 9T
  • Features:-
  • Operating Temperature:-65°C ~ 150°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:-

Related Products

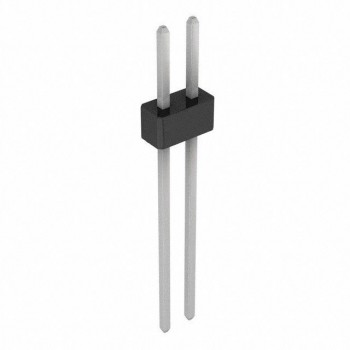

GEC01DAGN

CONN HEADER VERT 2POS

GEC01DAGN Datasheet
  • 1: $0.29440
  • 100: $0.29440

316879-1

CONN HEADER VERT 2POS 5.08MM

  • 1: $0.29442
  • 9000: $0.29442

5-292230-5

CONN HEADER SMD 5POS 1.5MM

5-292230-5 Datasheet
  • 1: $0.29450
  • 20000: $0.29450

5019400303

CONN HEADER SMD 3POS 1MM

5019400303 Datasheet
  • 1: $0.29470
  • 8800: $0.29470

57102-F06-02LF

CONN HEADER VERT 4POS 2MM

57102-F06-02LF Datasheet
  • 1: $0.29472
  • 1500: $0.27264

20021221-00008D1LF

CONN HEADER SMD 8POS 1.27MM

20021221-00008D1LF Datasheet
  • 1: $0.29472
  • 1846: $0.29472

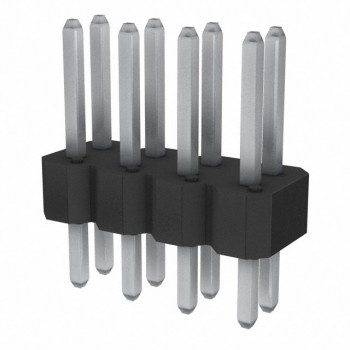

77313-402-08LF

CONN HEADER VERT 8POS 2.54MM

77313-402-08LF Datasheet
  • 1: $0.29472
  • 2000: $0.27264

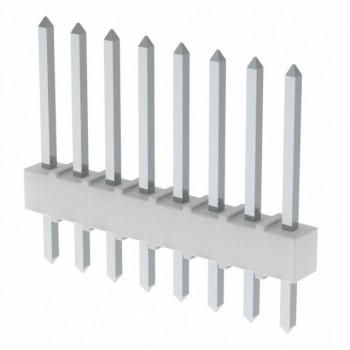

0022032087
