In Stock: 166

Can ship immediately

Pricing:
  • 1$0.64095
  • 1,500$0.64095

Quote It

Technical Details

  • Series:MTA-100
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:5
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:-
  • Contact Length - Mating:0.295" (7.49mm)



  • Contact Length - Post:0.140" (3.56mm)
  • Overall Contact Length:-
  • Insulation Height:0.100" (2.54mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:30.0µin (0.76µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-55°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Natural
  • Current Rating (Amps):Varies by Wire Gauge
  • Voltage Rating:250VAC

Related Products


77315-401-13LF

CONN HEADER R/A 13POS 2.54MM

77315-401-13LF Datasheet
  • 1: $0.64120
  • 400: $0.59280

77315-418-13LF

CONN HEADER R/A 13POS 2.54MM

77315-418-13LF Datasheet
  • 1: $0.64120
  • 400: $0.59280

77315-424-13LF

CONN HEADER R/A 13POS 2.54MM

77315-424-13LF Datasheet
  • 1: $0.64120
  • 400: $0.59280

1747067-8

GRACE INERTIA CONN 2.5 HDR ASSY

  • 1: $0.64121

350-10-107-00-006101

CONN HEADER VERT 7POS 2.54MM

350-10-107-00-006101 Datasheet
  • 1: $0.64128
  • 1250: $0.56011

7-292208-8

CONN HEADER VERT 28POS 1.5MM

7-292208-8 Datasheet
  • 1: $0.64132
  • 22000: $0.61946

10137925-0811LF

MINITEK PWR3.0 R/A SMT

  • 1: $0.64134

77313-402-20LF

CONN HEADER VERT 20POS 2.54MM

77313-402-20LF Datasheet
  • 1: $0.64144
  • 1000: $0.59328

3-647182-5

CONN HEADER VERT 5POS 3.96MM

3-647182-5 Datasheet
  • 1: $0.64156
  • 5000: $0.64156

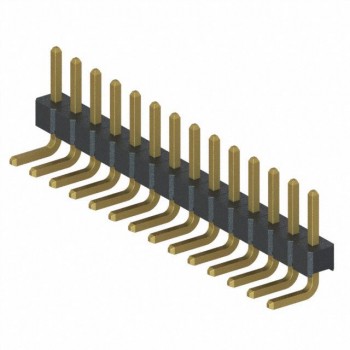

M22-2531405
