350-10-109-00-001101

Preci-Dip
In Stock: 136

Can ship immediately

Pricing:
  • 1$0.78975
  • 1,000$0.73576

Quote It

Technical Details

  • Series:350
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:9
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Board
  • Shrouding:Unshrouded
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.156" (3.96mm)



  • Contact Length - Post:0.164" (4.17mm)
  • Overall Contact Length:0.477" (12.12mm)
  • Insulation Height:0.110" (2.79mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:10.0µin (0.25µm)
  • Contact Finish - Post:Gold
  • Contact Material:Brass
  • Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
  • Features:-
  • Operating Temperature:-55°C ~ 125°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):3A
  • Voltage Rating:150VDC

Related Products


350-10-109-00-018101

CONN HEADER VERT 9POS 2.54MM

350-10-109-00-018101 Datasheet
  • 1: $0.78975
  • 1000: $0.73576

2035560807

CONN HEADER SMD 8POS 1MM

  • 1: $0.78975
  • 6600: $0.78975

1-2232829-8

SGI2.0 HEADER ASSEMBLY SMT 8P,KE

  • 1: $0.78982

0908143020

CONN HEADER SMD 20POS 1.27MM

0908143020 Datasheet
  • 1: $0.78988
  • 9450: $0.78988

0022289240

CONN HEADER R/A 24POS 2.54MM

0022289240 Datasheet
  • 1: $0.78988
  • 3000: $0.78988

0022289241

CONN HEADER R/A 24POS 2.54MM

0022289241 Datasheet
  • 1: $0.78988
  • 3000: $0.78988

PEC06DABN

CONN HEADER VERT 12POS 2.54MM

PEC06DABN Datasheet
  • 1: $0.79000
  • 10: $0.69900
  • 25: $0.65760

929710-10-03

CONN HEADER VERT 6POS 2.54MM

929710-10-03 Datasheet
  • 1: $0.79000
  • 10: $0.69600
  • 25: $0.65480

PREC017DFBN-RC

CONN HEADER VERT 34POS 2.54MM

PREC017DFBN-RC Datasheet
  • 1: $0.79000
  • 10: $0.70700
  • 100: $0.58220

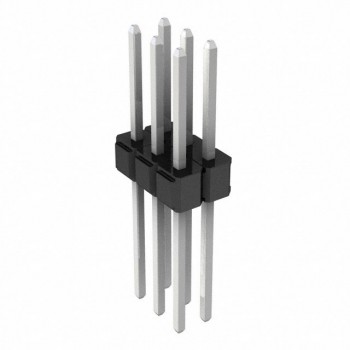

929710-03-03
