In Stock: 177

Can ship immediately

Pricing:
  • 1$1.36242
  • 1,000$1.36242

Quote It

Technical Details

  • Series:-
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.050" (1.27mm)
  • Number of Positions:26
  • Number of Rows:2
  • Row Spacing - Mating:0.050" (1.27mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Unshrouded
  • Mounting Type:Surface Mount
  • Termination:Solder
  • Fastening Type:Push-Pull
  • Contact Length - Mating:0.118" (3.00mm)



  • Contact Length - Post:-
  • Overall Contact Length:-
  • Insulation Height:0.039" (1.00mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:Flash
  • Contact Finish - Post:Gold
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA9T), Nylon 9T
  • Features:Board Guide
  • Operating Temperature:-40°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:-
  • Current Rating (Amps):1A
  • Voltage Rating:-

Related Products


GRPB261VWTC-RC

CONN HEADER SMD 26POS 1.27MM

GRPB261VWTC-RC Datasheet
  • 1: $1.36242
  • 1000: $1.36242

GRPB261VWTD-RC

CONN HEADER SMD 26POS 1.27MM

GRPB261VWTD-RC Datasheet
  • 1: $1.36242
  • 1000: $1.36242

NRPN122MAMS-M81RC

CONN HEADER SMD 24POS 2MM

NRPN122MAMS-M81RC Datasheet
  • 1: $1.36242
  • 1300: $ 1.36242

1053142306

CONN HEADER R/A 6POS 2.5MM

1053142306 Datasheet
  • 1: $1.36276
  • 10: $1.24678
  • 204: $1.08188

351-80-111-00-005101

CONN HEADER VERT 11POS 2.54MM

351-80-111-00-005101 Datasheet
  • 1: $1.36287
  • 390: $1.25503

AWH 26A-0202-T

CONN HEADER R/A 26POS 2.54MM

AWH 26A-0202-T Datasheet
  • 1: $1.36290
  • 100: $1.36290

3-647108-5

CONN HEADER SMD 5POS 2.54MM

3-647108-5 Datasheet
  • 1: $1.36296
  • 2000: $1.36296

104071-1

CONN HEADER VERT 10POS 1.27MM

104071-1 Datasheet
  • 1: $1.36300
  • 28: $1.16260
  • 112: $1.06145

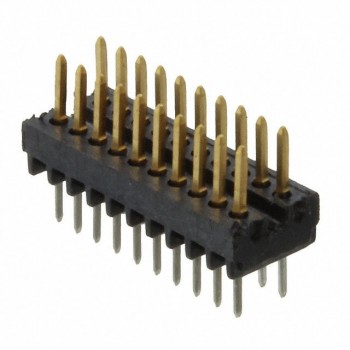

103916-2

CONN HEADER VERT 20POS 1.27MM

103916-2 Datasheet
  • 1: $1.36300
  • 10: $1.23863
  • 100: $1.06144

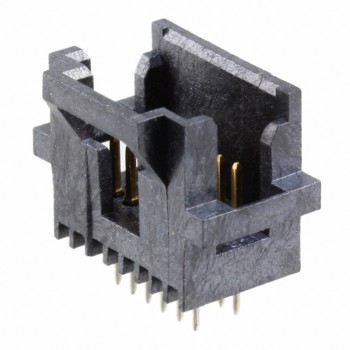

104068-8
