008283141103868

KYOCERA Corporation
In Stock: 143

Can ship immediately

Pricing:
  • 1$2.05829

Quote It

Technical Details

  • Series:8283, Kyocera
  • Package:Bag
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.079" (2.00mm)
  • Number of Positions:14
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 3 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Kinked Pin, Solder
  • Fastening Type:Detent Lock
  • Contact Length - Mating:0.185" (4.70mm)



  • Contact Length - Post:0.118" (3.00mm)
  • Overall Contact Length:-
  • Insulation Height:0.157" (4.00mm)
  • Contact Shape:Circular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:1.97µin (0.050µm)
  • Contact Finish - Post:Gold
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic
  • Features:-
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:-
  • Insulation Color:-
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


008283151101868

WIRE TO BOARD

  • 1: $2.05829

008283141102868

WIRE TO BOARD

  • 1: $2.05829

0438100332

CONN HEADER R/A 6POS 4.2MM

0438100332 Datasheet
  • 1: $2.05835
  • 624: $1.99954

534978-2

CONN HEADER VERT 16POS 2.54MM

534978-2 Datasheet
  • 1: $2.05900
  • 1020: $1.91400

09185266914001

CONN HEADER VERT 26POS 2.54MM

09185266914001 Datasheet
  • 1: $2.05900
  • 1000: $2.05900

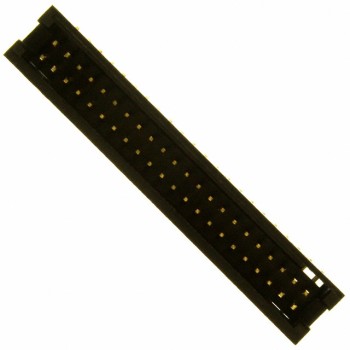

SBH31-NBPB-D22-SM-BK

CONN HEADER SMD 44POS 1.27MM

SBH31-NBPB-D22-SM-BK Datasheet
  • 1: $2.05929
  • 1000: $2.05929

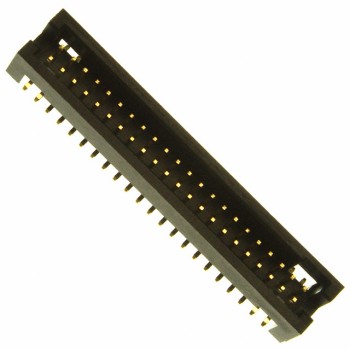

SBH31-NBPB-D22-SP-BK
