In Stock: 117

Can ship immediately

Pricing:
  • 1$2.11915
  • 3,000$1.63299

Quote It

Technical Details

  • Series:Dynamic D-3200
  • Package:Tube
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Tab
  • Pitch - Mating:0.200" (5.08mm)
  • Number of Positions:6
  • Number of Rows:2
  • Row Spacing - Mating:0.300" (7.62mm)
  • Number of Positions Loaded:All
  • Style:Board to Board or Cable
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole, Right Angle
  • Termination:Solder
  • Fastening Type:Detent Lock
  • Contact Length - Mating:-



  • Contact Length - Post:0.150" (3.81mm)
  • Overall Contact Length:-
  • Insulation Height:0.668" (16.97mm)
  • Contact Shape:Rectangular
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:150.0µin (3.81µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Thermoplastic, Polyester, Glass Filled
  • Features:Board Lock
  • Operating Temperature:-55°C ~ 105°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:600V

Related Products


800-10-015-66-001101

CONN HEADER VERT 15POS 2.54MM

800-10-015-66-001101 Datasheet
  • 1: $2.11922
  • 200: $2.11922

3-641119-9

CONN HEADER VERT 9POS 3.96MM

3-641119-9 Datasheet
  • 1: $2.11931
  • 1000: $2.01839

SMH100-LPPE-S34-RA-BK

CONN HEADER R/A 34POS 1MM

SMH100-LPPE-S34-RA-BK Datasheet
  • 1: $2.11932
  • 1000: $2.11932

SMH100-LPSE-S17-RA-BK

CONN HEADER R/A 17POS 1MM

SMH100-LPSE-S17-RA-BK Datasheet
  • 1: $2.11932
  • 1000: $ 2.11932

0015912540

CONN HEADER SMD 54POS 2.54MM

0015912540 Datasheet
  • 1: $2.11946
  • 1512: $2.11946

0702800771

CONN HEADER VERT 46POS 2.54MM

0702800771 Datasheet
  • 1: $2.11946
  • 1500: $2.11946

0022284284

CONN HEADER VERT 28POS 2.54MM

0022284284 Datasheet
  • 1: $2.12000
  • 10: $1.92700
  • 25: $1.80960

929835-01-30

CONN HEADER R/A 30POS 2.54MM

929835-01-30 Datasheet
  • 1: $2.12000
  • 10: $1.92100
  • 25: $1.80320

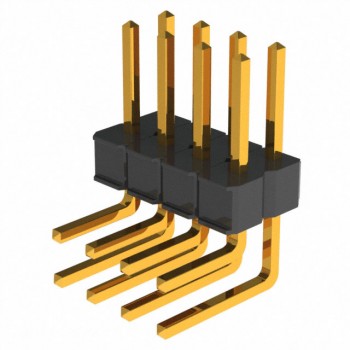

929667-04-04-I

CONN HEADER R/A 8POS 2.54MM

929667-04-04-I Datasheet
  • 1: $2.12000
  • 10: $1.92300
  • 25: $1.80560

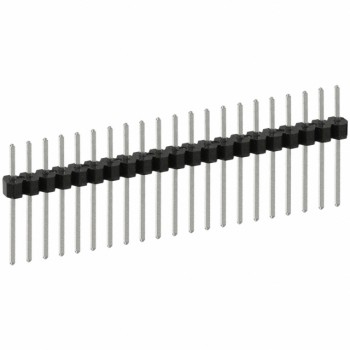

PEC21SAEN
