PS-26PE-D4T1-B1E

JAE Electronics
In Stock: 156

Can ship immediately

Pricing:
  • 1$4.6
  • 109$4.6

Quote It

Technical Details

  • Series:PS
  • Package:Bulk
  • Part Status:Active
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.100" (2.54mm)
  • Number of Positions:26
  • Number of Rows:2
  • Row Spacing - Mating:0.100" (2.54mm)
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Latch Holder
  • Contact Length - Mating:0.236" (6.00mm)



  • Contact Length - Post:0.110" (2.79mm)
  • Overall Contact Length:0.461" (11.70mm)
  • Insulation Height:0.350" (8.89mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:3.90µin (0.099µm)
  • Contact Finish - Post:Tin
  • Contact Material:Copper Alloy
  • Insulation Material:Polybutylene Terephthalate (PBT)
  • Features:Keying Slot
  • Operating Temperature:-
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Black
  • Current Rating (Amps):-
  • Voltage Rating:-

Related Products


PS-26PLB-D4LT1-FL1E

CONN HEADER R/A 26POS 2.54MM

PS-26PLB-D4LT1-FL1E Datasheet
  • 1: $4.60000
  • 109: $4.60000

PS-30PLB-D4T1-FL1E

CONN HEADER VERT 30POS 2.54MM

PS-30PLB-D4T1-FL1E Datasheet
  • 1: $4.60000
  • 109: $4.60000

PS-34PA-D4T1-PKL1

CONN HEADER VERT 34POS 2.54MM

  • 1: $4.60000
  • 109: $4.60000

929648-04-25-EU

CONN HEADER R/A 25POS 2.54MM

929648-04-25-EU Datasheet
  • 1: $4.60000
  • 10: $4.41600
  • 25: $4.04800

350-80-160-00-013101

CONN HEADER VERT 60POS 2.54MM

350-80-160-00-013101 Datasheet
  • 1: $4.60100
  • 120: $4.23717

450-80-260-00-013101

CONN HEADER VERT 60POS 2.54MM

450-80-260-00-013101 Datasheet
  • 1: $4.60100
  • 200: $4.23715

1411500000

CH20M22 S PPP GGY

  • 1: $4.60300

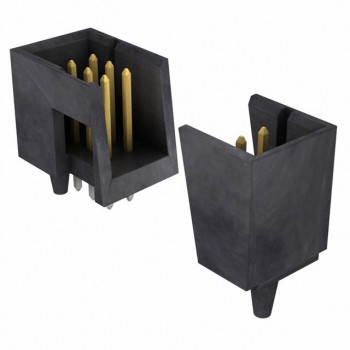

0015477632
