DF13-4P-1.25DSA(50)

Hirose
In Stock: 182

Can ship immediately

Pricing:

Call for price or sumbit a RFQ

Quote It

Technical Details

  • Series:DF13
  • Package:Tube
  • Part Status:Obsolete
  • Connector Type:Header
  • Contact Type:Male Pin
  • Pitch - Mating:0.049" (1.25mm)
  • Number of Positions:4
  • Number of Rows:1
  • Row Spacing - Mating:-
  • Number of Positions Loaded:All
  • Style:Board to Cable/Wire
  • Shrouding:Shrouded - 4 Wall
  • Mounting Type:Through Hole
  • Termination:Solder
  • Fastening Type:Detent Lock
  • Contact Length - Mating:-



  • Contact Length - Post:0.091" (2.30mm)
  • Overall Contact Length:-
  • Insulation Height:0.169" (4.30mm)
  • Contact Shape:Square
  • Contact Finish - Mating:Gold
  • Contact Finish Thickness - Mating:8.00µin (0.203µm)
  • Contact Finish - Post:-
  • Contact Material:Brass
  • Insulation Material:Polyamide (PA), Nylon
  • Features:-
  • Operating Temperature:-35°C ~ 85°C
  • Ingress Protection:-
  • Material Flammability Rating:UL94 V-0
  • Insulation Color:Beige
  • Current Rating (Amps):1A
  • Voltage Rating:150V

Related Products


DF13-5P-1.25DSA(50)

CONN HEADER VERT 5POS 1.25MM

DF13-5P-1.25DSA(50) Datasheet

Call for price


DF13-6P-1.25DSA(50)

CONN HEADER VERT 6POS 1.25MM

DF13-6P-1.25DSA(50) Datasheet

Call for price


DF13-7P-1.25DSA(50)

CONN HEADER VERT 7POS 1.25MM

DF13-7P-1.25DSA(50) Datasheet

Call for price


DF13-8P-1.25DSA(50)

CONN HEADER VERT 8POS 1.25MM

DF13-8P-1.25DSA(50) Datasheet

Call for price


DF13-9P-1.25DSA(50)

CONN HEADER VERT 9POS 1.25MM

Call for price


DF13-11P-1.25DSA(50)

CONN HEADER VERT 11POS 1.25MM

DF13-11P-1.25DSA(50) Datasheet

Call for price


DF13-12P-1.25DSA(50)

CONN HEADER VERT 12POS 1.25MM

DF13-12P-1.25DSA(50) Datasheet

Call for price


DF13-14P-1.25DSA(50)

CONN HEADER VERT 14POS 1.25MM

DF13-14P-1.25DSA(50) Datasheet

Call for price

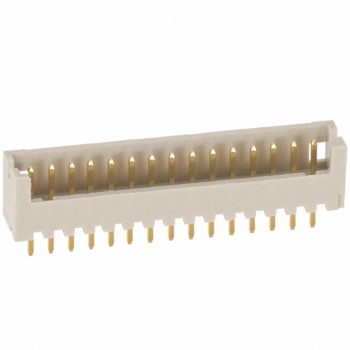

DF13-15P-1.25DSA(50)

CONN HEADER VERT 15POS 1.25MM

DF13-15P-1.25DSA(50) Datasheet

Call for price

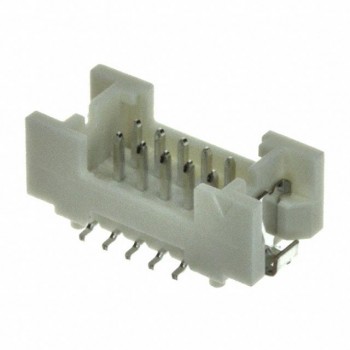

DF13-10DP-1.25V(20)
