S12B-ZR
JST
- Lifecycle status Active
- RoHS RoHS Compliant

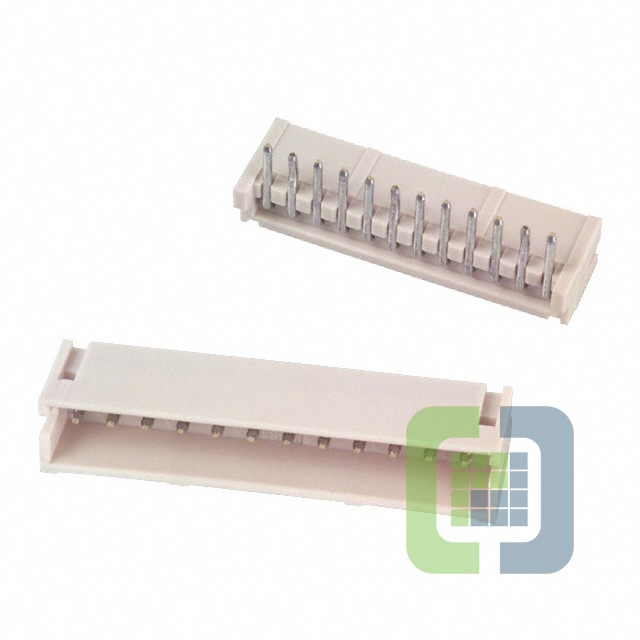

- DescriptionCONN HEADER R/A 12POS 1.5MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet S12B-ZR Datasheet
-
ECAD Model
- Share
In Stock: 193
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:ZH
- Package:Bulk
- Part Status:Obsolete
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.059" (1.50mm)
- Number of Positions:12
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole, Right Angle
- Termination:Press-Fit, Solder
- Fastening Type:Detent Lock
- Contact Length - Mating:0.094" (2.40mm)
- Contact Length - Post:0.106" (2.69mm)
- Overall Contact Length:-
- Insulation Height:0.146" (3.70mm)
- Contact Shape:Circular
- Contact Finish - Mating:Tin-Lead
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:Tin-Lead
- Contact Material:Brass
- Insulation Material:Polyamide (PA66), Nylon 6/6, Glass Filled
- Features:-
- Operating Temperature:-25°C ~ 85°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Natural
- Current Rating (Amps):1A
- Voltage Rating:50V
