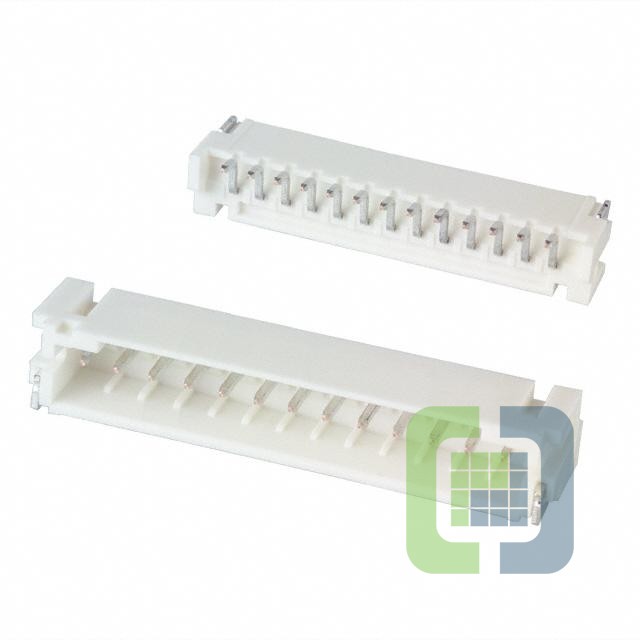

S13B-PH-SM3-TB
JST
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER SMD R/A 13POS 2MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet S13B-PH-SM3-TB Datasheet
-
ECAD Model
- Share
In Stock: 133
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:PH
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.079" (2.00mm)
- Number of Positions:13
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Surface Mount, Right Angle
- Termination:Solder
- Fastening Type:Detent Lock
- Contact Length - Mating:0.130" (3.30mm)
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:0.217" (5.51mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin-Lead
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:Tin-Lead
- Contact Material:Brass
- Insulation Material:Polyamide (PA46), Nylon 4/6
- Features:Solder Retention
- Operating Temperature:-25°C ~ 85°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Natural
- Current Rating (Amps):2A
- Voltage Rating:100V
