0683011019
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant

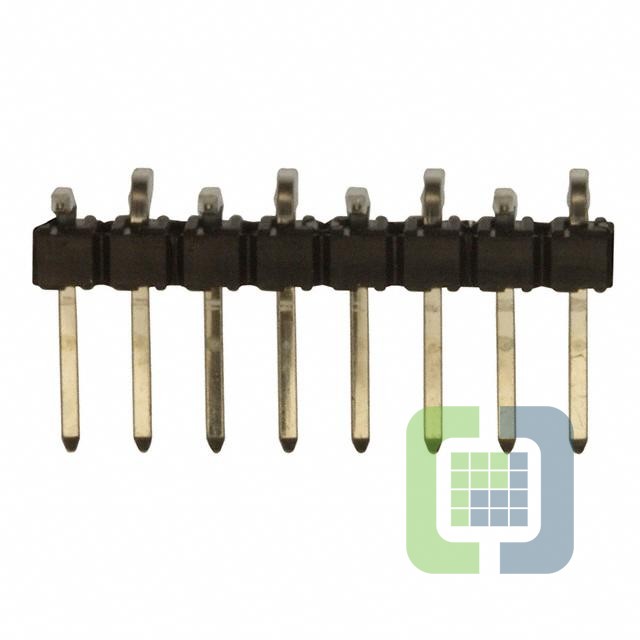

- DescriptionCONN HEADER SMD 8POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
-
ECAD Model
- Share
In Stock: 100
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:KK254, 68301
- Package:Tube
- Part Status:Obsolete
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:8
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Unshrouded
- Mounting Type:Surface Mount
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.240" (6.10mm)
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:0.090" (2.29mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:100.0µin (2.54µm)
- Contact Finish - Post:Tin
- Contact Material:Phosphor Bronze
- Insulation Material:Polyamide (PA46), Nylon 4/6, Glass Filled
- Features:-
- Operating Temperature:-
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:-
