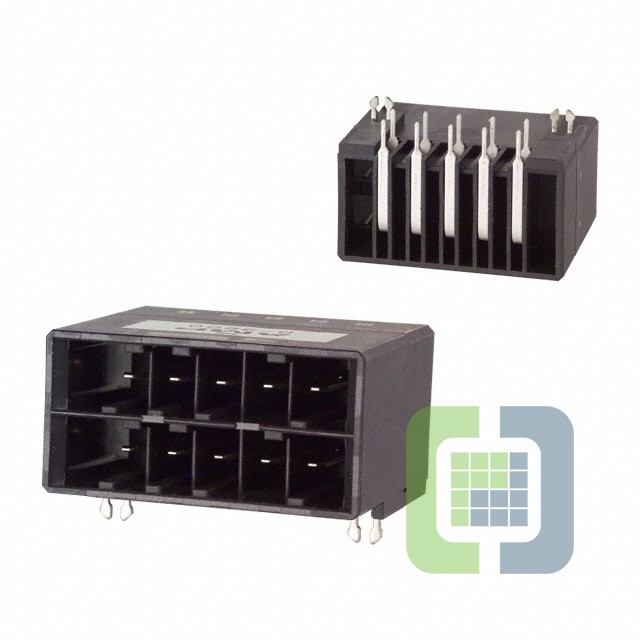

2-316080-5
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER R/A 10POS 5.08MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 2-316080-5 Datasheet
-
ECAD Model
- Share
In Stock: 112
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:Dynamic D-3200
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Tab
- Pitch - Mating:0.200" (5.08mm)
- Number of Positions:10
- Number of Rows:2
- Row Spacing - Mating:0.300" (7.62mm)
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Detent Lock
- Contact Length - Mating:-
- Contact Length - Post:0.150" (3.81mm)
- Overall Contact Length:-
- Insulation Height:0.668" (16.97mm)
- Contact Shape:Rectangular
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:78.7µin (2.00µm)
- Contact Finish - Post:Tin
- Contact Material:Copper Alloy
- Insulation Material:Thermoplastic, Polyester, Glass Filled
- Features:Board Lock
- Operating Temperature:-55°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:600V
