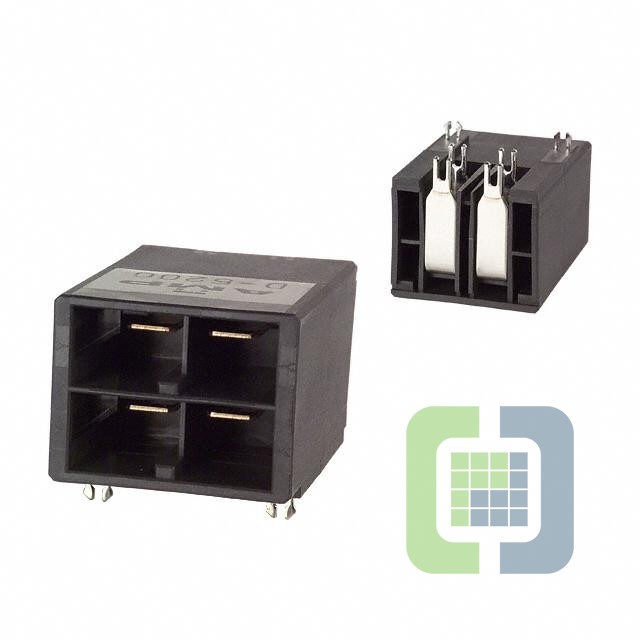

2-1123309-3
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER R/A 4POS 10.16MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 2-1123309-3 Datasheet
-
ECAD Model
- Share
In Stock: 124
Can ship immediately
Pricing:
- 1$5.67591
- 2,160$4.06065
Quote It
Technical Details
- Series:Dynamic D-5200
- Package:Bulk
- Part Status:Obsolete
- Connector Type:Header
- Contact Type:Tab
- Pitch - Mating:0.400" (10.16mm)
- Number of Positions:4
- Number of Rows:2
- Row Spacing - Mating:0.400" (10.16mm)
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Detent Lock
- Contact Length - Mating:-
- Contact Length - Post:0.150" (3.81mm)
- Overall Contact Length:-
- Insulation Height:0.947" (24.06mm)
- Contact Shape:Rectangular
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:30.0µin (0.76µm)
- Contact Finish - Post:Tin
- Contact Material:Copper Alloy
- Insulation Material:Thermoplastic, Polyester, Glass Filled
- Features:Board Lock
- Operating Temperature:-55°C ~ 105°C
- Ingress Protection:IP20
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):30A
- Voltage Rating:630V
