2-85829-0
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant

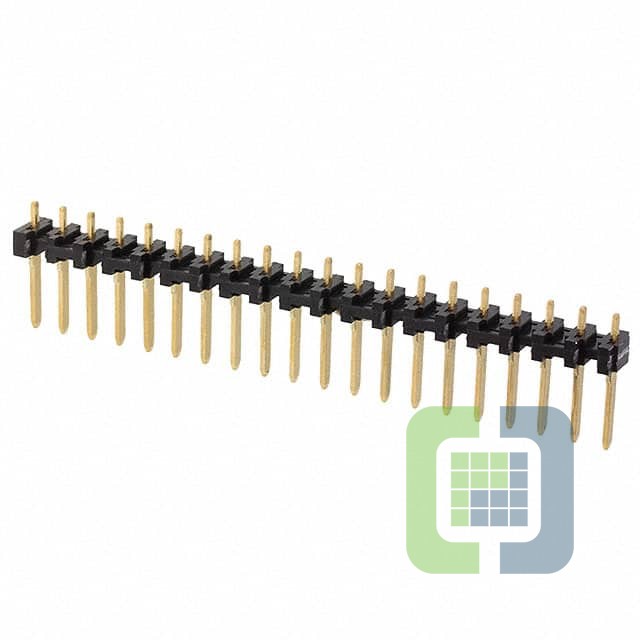

- DescriptionCONN HEADER VERT 20POS 3.96MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 2-85829-0 Datasheet
-
ECAD Model
- Share
In Stock: 119
Can ship immediately
Pricing:
- 1$13.17
- 10$11.9718
- 100$10.17589
- 500$8.67947
- 1,000$7.96118
Quote It
Technical Details
- Series:AMPMODU Mod I
- Package:Bulk
- Part Status:Discontinued at Digi-Key
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.156" (3.96mm)
- Number of Positions:20
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Unshrouded
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.405" (10.29mm)
- Contact Length - Post:0.125" (3.18mm)
- Overall Contact Length:0.655" (16.64mm)
- Insulation Height:0.125" (3.18mm)
- Contact Shape:Rectangular
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:30.0µin (0.76µm)
- Contact Finish - Post:Gold
- Contact Material:Brass
- Insulation Material:Thermoplastic
- Features:-
- Operating Temperature:-65°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):5A
- Voltage Rating:-
