929710-10-14
3M
- Lifecycle status Active
- RoHS RoHS Compliant

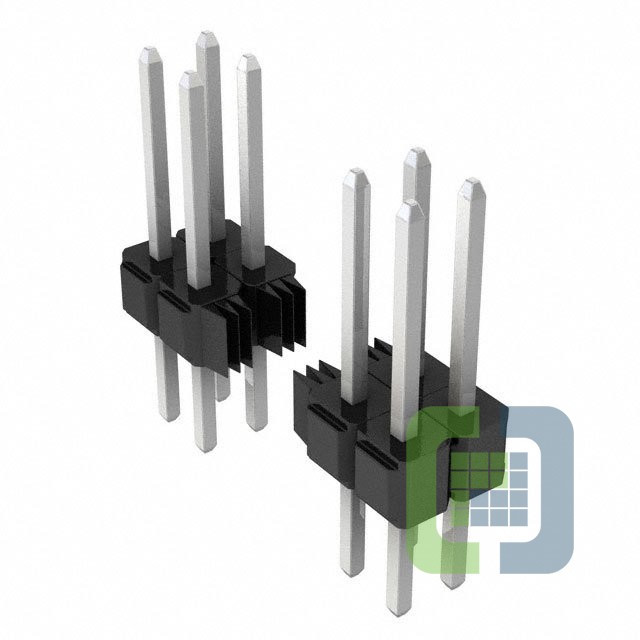

- DescriptionCONN HEADER VERT 28POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 929710-10-14 Datasheet
-
ECAD Model
- Share
In Stock: 159
Can ship immediately
Pricing:
- 1$3.18
- 10$3.055
- 25$2.8008
- 50$2.6734
- 100$2.5461
- 250$2.22788
- 500$2.16422
Quote It
Technical Details
- Series:929
- Package:Bulk
- Part Status:Discontinued at Digi-Key
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:28
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Unshrouded
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.318" (8.08mm)
- Contact Length - Post:0.175" (4.45mm)
- Overall Contact Length:0.593" (15.07mm)
- Insulation Height:0.100" (2.54mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin-Lead
- Contact Finish Thickness - Mating:100.0µin (2.54µm)
- Contact Finish - Post:-
- Contact Material:Copper Alloy
- Insulation Material:Polybutylene Terephthalate (PBT), Polyester, Glass Filled
- Features:-
- Operating Temperature:-40°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):2.5A
- Voltage Rating:-
