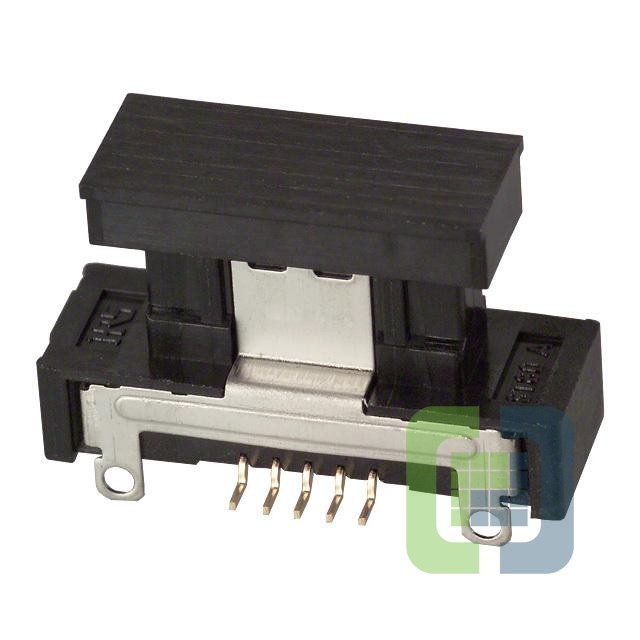

ST80X-10S
Hirose
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER SMD 10POS 1MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet ST80X-10S Datasheet
-
ECAD Model
- Share
In Stock: 163
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:ST
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Connector Type:Plug, Cradle
- Contact Type:Non-Gendered
- Pitch - Mating:0.039" (1.00mm)
- Number of Positions:10
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:-
- Mounting Type:Surface Mount
- Termination:Solder
- Fastening Type:Latch Holder
- Contact Length - Mating:-
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:0.378" (9.60mm)
- Contact Shape:-
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:30.0µin (0.76µm)
- Contact Finish - Post:-
- Contact Material:Copper Alloy
- Insulation Material:Polyamide (PA), Nylon
- Features:Board Guide, Mounting Flange, Shielded
- Operating Temperature:-30°C ~ 80°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):0.5A
- Voltage Rating:100V
