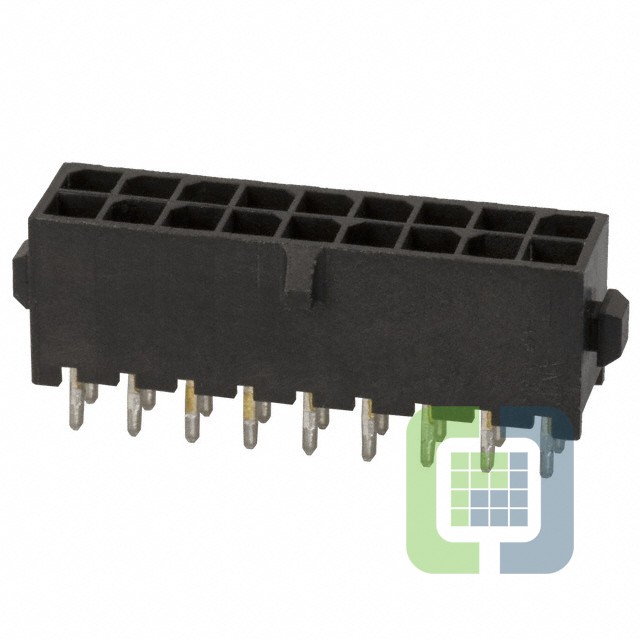

1-794631-8
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 18POS 3MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 1-794631-8 Datasheet
-
ECAD Model
- Share
In Stock: 167
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:Micro MATE-N-LOK
- Package:Tray
- Part Status:Obsolete
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.118" (3.00mm)
- Number of Positions:18
- Number of Rows:2
- Row Spacing - Mating:0.118" (3.00mm)
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Press-Fit, Solder
- Fastening Type:Locking Ramp
- Contact Length - Mating:-
- Contact Length - Post:0.125" (3.18mm)
- Overall Contact Length:-
- Insulation Height:0.364" (9.25mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:15.0µin (0.38µm)
- Contact Finish - Post:Tin-Lead
- Contact Material:Brass
- Insulation Material:Polyamide (PA), Nylon
- Features:-
- Operating Temperature:-40°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):Varies by Wire Gauge
- Voltage Rating:250V
