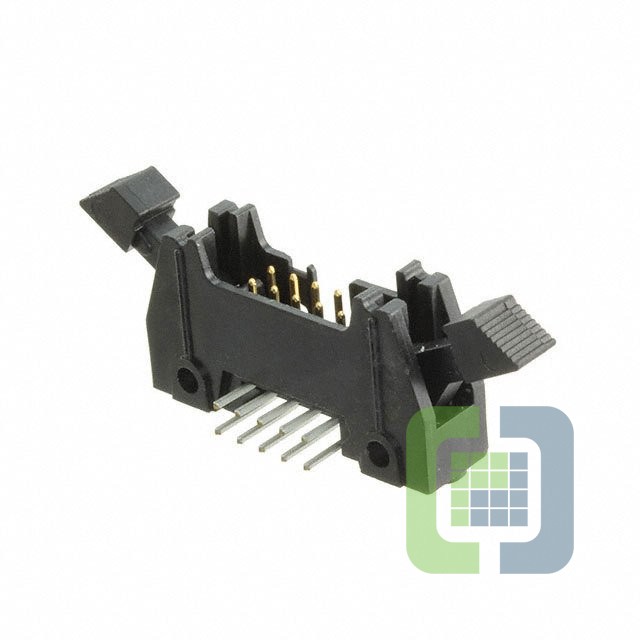

3793-5202
3M
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER R/A 10POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 3793-5202 Datasheet
-
ECAD Model
- Share
In Stock: 138
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:3000
- Package:Bulk
- Part Status:Obsolete
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:10
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Latch Lock/Eject Hooks, Short
- Contact Length - Mating:0.240" (6.10mm)
- Contact Length - Post:0.112" (2.84mm)
- Overall Contact Length:-
- Insulation Height:0.340" (8.64mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:30.0µin (0.76µm)
- Contact Finish - Post:Tin-Lead
- Contact Material:Copper Alloy
- Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
- Features:Keying Slot, Mounting Flange
- Operating Temperature:-55°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):1.75A
- Voltage Rating:-
