NRPN064RCCN-RC
Sullins Connector Solutions
- Lifecycle status Active
- RoHS RoHS Compliant

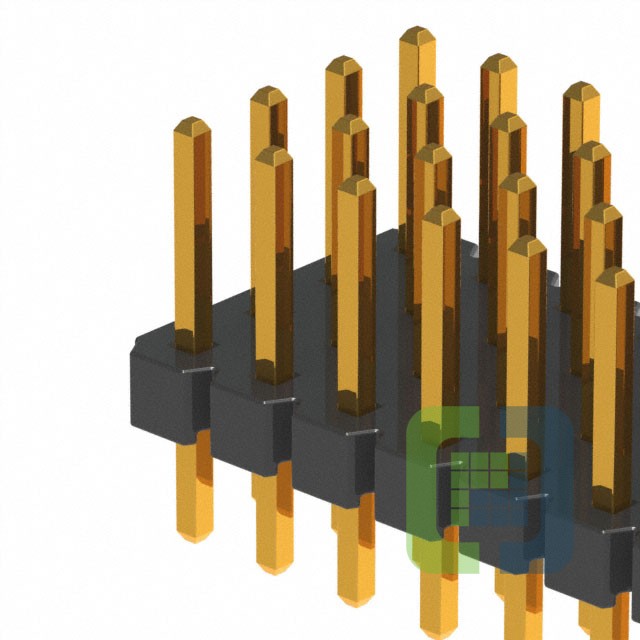

- DescriptionCONN HEADER VERT 24POS 2MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet NRPN064RCCN-RC Datasheet
-
ECAD Model
- Share
In Stock: 151
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Discontinued at Digi-Key
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.079" (2.00mm)
- Number of Positions:24
- Number of Rows:4
- Row Spacing - Mating:0.079" (2.00mm)
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Unshrouded
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.173" (4.40mm)
- Contact Length - Post:0.094" (2.40mm)
- Overall Contact Length:0.327" (8.30mm)
- Insulation Height:0.059" (1.50mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:Flash
- Contact Finish - Post:Gold
- Contact Material:Brass
- Insulation Material:Polyamide (PA6T), Nylon 6T
- Features:-
- Operating Temperature:-40°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):2A
- Voltage Rating:-
