SM13B-GHS-TB(LF)(SN)
JST
- Lifecycle status Active
- RoHS RoHS Compliant

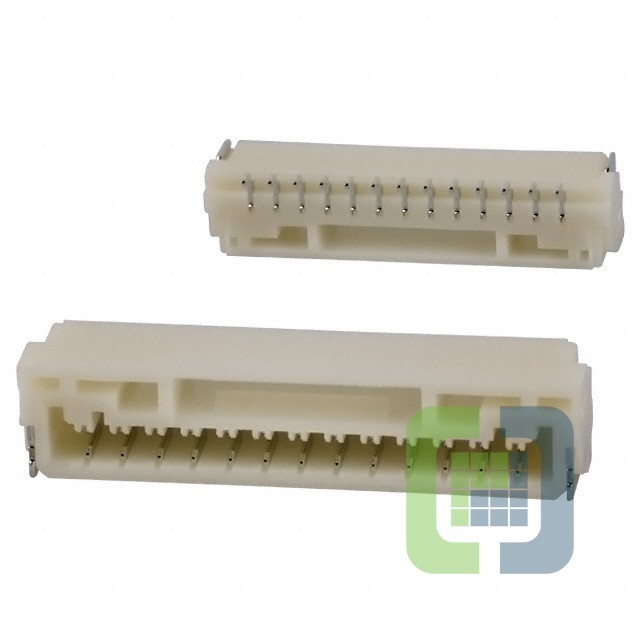

- DescriptionCONN HEADER SMD R/A 13POS 1.25MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet SM13B-GHS-TB(LF)(SN) Datasheet
-
ECAD Model
- Share
In Stock: 109
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:GH
- Package:Tape & Reel (TR)
- Part Status:Active
- Connector Type:Header
- Contact Type:Outer Shroud Contact
- Pitch - Mating:0.049" (1.25mm)
- Number of Positions:13
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Surface Mount, Right Angle
- Termination:Solder
- Fastening Type:Locking Ramp
- Contact Length - Mating:-
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:0.167" (4.25mm)
- Contact Shape:Rectangular
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:Tin
- Contact Material:Phosphor Bronze
- Insulation Material:Polyamide (PA9T), Nylon 9T
- Features:Solder Retention
- Operating Temperature:-25°C ~ 85°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Natural
- Current Rating (Amps):1A
- Voltage Rating:50V
