95278-401A40
Storage & Server IO (Amphenol ICC)
- Lifecycle status Active
- RoHS RoHS Compliant

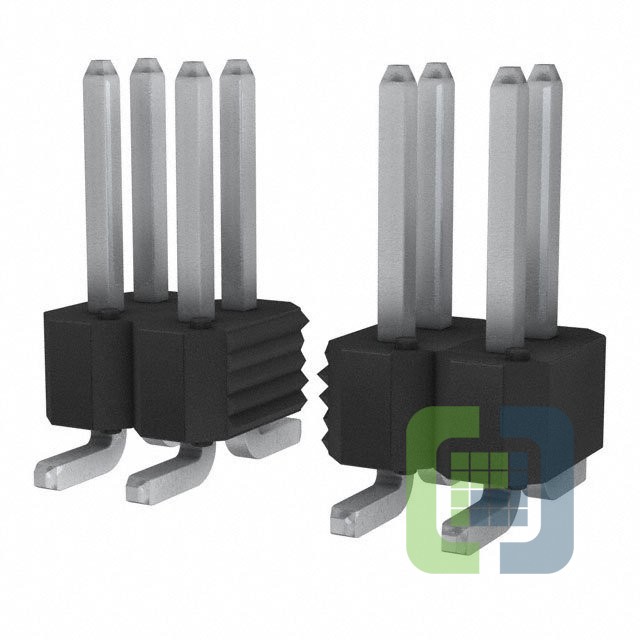

- DescriptionCONN HEADER SMD 40POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 95278-401A40 Datasheet
-
ECAD Model
- Share
In Stock: 106
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:BERGSTIK®
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- Connector Type:Header, Breakaway
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:40
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Unshrouded
- Mounting Type:Surface Mount
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.232" (5.90mm)
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:0.100" (2.54mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin-Lead
- Contact Finish Thickness - Mating:150.0µin (3.81µm)
- Contact Finish - Post:Tin-Lead
- Contact Material:Phosphor Bronze
- Insulation Material:Thermoplastic
- Features:Pick and Place
- Operating Temperature:-
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:-
