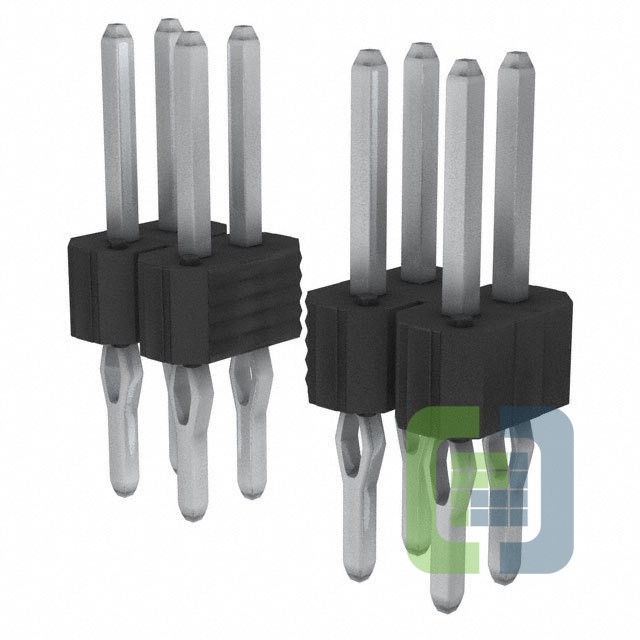

94674-440LF

Technical Details

• Series:BERGSTIK® II
• Package:Bulk
• Part Status:Obsolete
• Connector Type:Header
• Contact Type:Male Pin
• Pitch - Mating:0.100" (2.54mm)
• Number of Positions:40
• Number of Rows:2
• Row Spacing - Mating:0.100" (2.54mm)
• Number of Positions Loaded:All
• Style:Board to Board
• Shrouding:Unshrouded
• Mounting Type:Through Hole
• Termination:Press-Fit, Solder
• Fastening Type:Push-Pull
• Contact Length - Mating:0.230" (5.84mm)

• Contact Length - Post:0.185" (4.70mm)
• Overall Contact Length:0.505" (12.83mm)
• Insulation Height:0.100" (2.54mm)
• Contact Shape:Square
• Contact Finish - Mating:Tin
• Contact Finish Thickness - Mating:120.0µin (3.05µm)
• Contact Finish - Post:Tin
• Contact Material:Phosphor Bronze
• Insulation Material:-
• Features:-
• Operating Temperature:-
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Black
• Current Rating (Amps):-
• Voltage Rating:-
