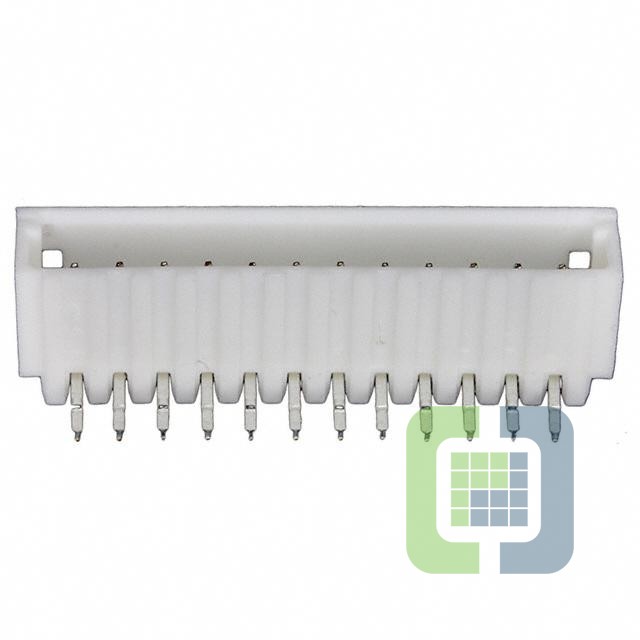

0533251260
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER R/A 12POS 2MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 0533251260 Datasheet
-
ECAD Model
- Share
In Stock: 146
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:Mi II 53325
- Package:Tray
- Part Status:Obsolete
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.079" (2.00mm)
- Number of Positions:12
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole, Right Angle
- Termination:Kinked Pin, Solder
- Fastening Type:Detent Lock
- Contact Length - Mating:0.136" (3.45mm)
- Contact Length - Post:0.138" (3.50mm)
- Overall Contact Length:-
- Insulation Height:0.191" (4.85mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:Tin
- Contact Material:Brass
- Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
- Features:-
- Operating Temperature:-
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Natural
- Current Rating (Amps):-
- Voltage Rating:-
