0530140910
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant

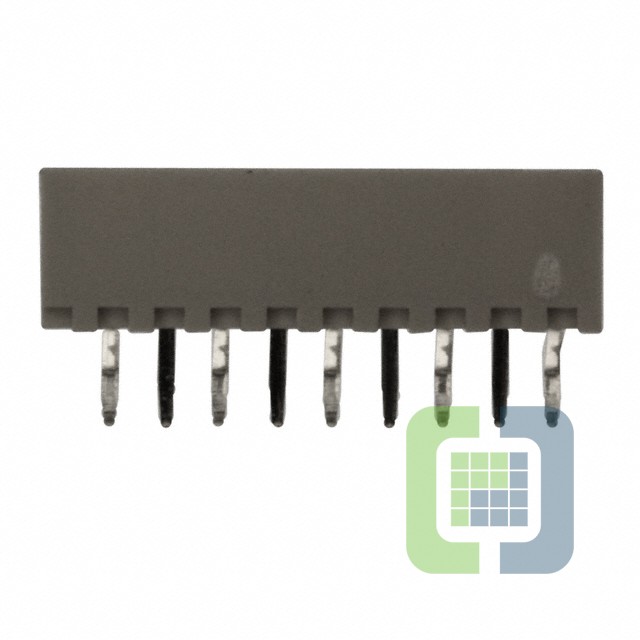

- DescriptionCONN HEADER VERT 9POS 2MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 0530140910 Datasheet
-
ECAD Model
- Share
In Stock: 119
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:MicroBlade 53014
- Package:Bulk
- Part Status:Obsolete
- Connector Type:Header
- Contact Type:Male Blade
- Pitch - Mating:0.079" (2.00mm)
- Number of Positions:9
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Kinked Pin, Solder
- Fastening Type:Detent Lock
- Contact Length - Mating:0.122" (3.10mm)
- Contact Length - Post:0.138" (3.50mm)
- Overall Contact Length:0.327" (8.30mm)
- Insulation Height:0.230" (5.85mm)
- Contact Shape:Rectangular
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:Tin
- Contact Material:Phosphor Bronze
- Insulation Material:Polyamide (PA66), Nylon 6/6, Glass Filled
- Features:-
- Operating Temperature:-
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Natural
- Current Rating (Amps):-
- Voltage Rating:-
