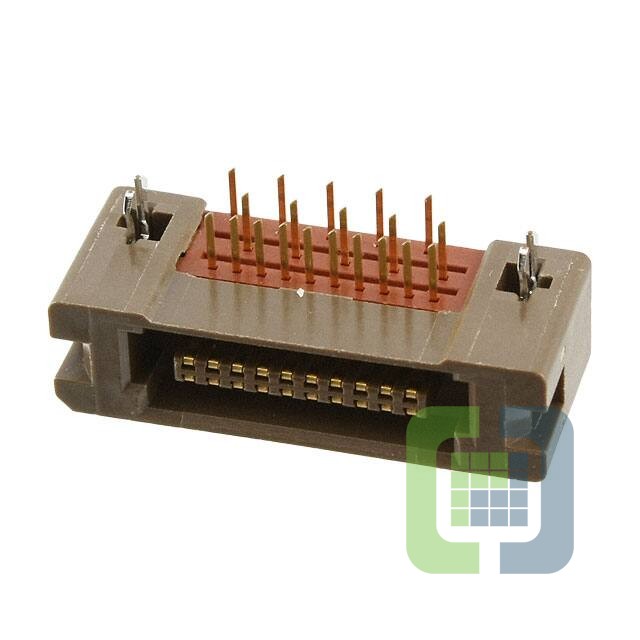

P50LE-020P1-RR1-DA

Technical Details

• Series:Pak 50, P50LE
• Package:Bulk
• Part Status:Obsolete
• Connector Type:Plug
• Contact Type:Center Strip Contact
• Pitch - Mating:0.050" (1.27mm)
• Number of Positions:20
• Number of Rows:2
• Row Spacing - Mating:-
• Number of Positions Loaded:All
• Style:Board to Cable/Wire
• Shrouding:Shrouded - 4 Wall
• Mounting Type:Through Hole, Right Angle
• Termination:Solder
• Fastening Type:Latch Holder
• Contact Length - Mating:-

• Contact Length - Post:0.118" (3.00mm)
• Overall Contact Length:-
• Insulation Height:0.276" (7.00mm)
• Contact Shape:-
• Contact Finish - Mating:Gold
• Contact Finish Thickness - Mating:Flash
• Contact Finish - Post:Gold
• Contact Material:Phosphor Bronze
• Insulation Material:Polyphenylene Sulfide (PPS), Glass Filled
• Features:Board Lock
• Operating Temperature:-55°C ~ 85°C
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Brown
• Current Rating (Amps):0.5A
• Voltage Rating:-
