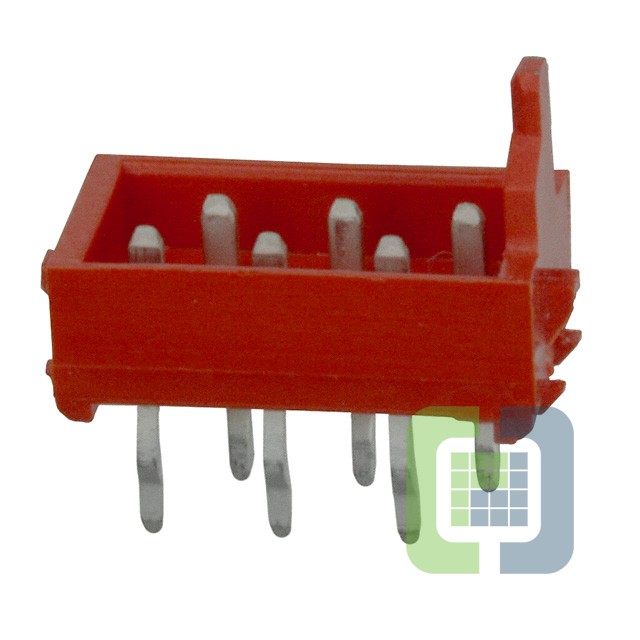

7-215464-6

Technical Details

• Series:Micro-MaTch
• Package:Cut Tape (CT)Tape & Box (TB)
• Part Status:Discontinued at Digi-Key
• Connector Type:Header
• Contact Type:Male Pin
• Pitch - Mating:0.100" (2.54mm)
• Number of Positions:6
• Number of Rows:2
• Row Spacing - Mating:0.100" (2.54mm)
• Number of Positions Loaded:All
• Style:Board to Board or Cable
• Shrouding:Shrouded - 4 Wall
• Mounting Type:Through Hole
• Termination:Press-Fit, Solder
• Fastening Type:Latch Lock
• Contact Length - Mating:-

• Contact Length - Post:0.122" (3.10mm)
• Overall Contact Length:-
• Insulation Height:0.142" (3.60mm)
• Contact Shape:Rectangular
• Contact Finish - Mating:Tin
• Contact Finish Thickness - Mating:118.1µin (3.00µm)
• Contact Finish - Post:Tin
• Contact Material:Brass
• Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
• Features:-
• Operating Temperature:-40°C ~ 105°C
• Ingress Protection:-
• Material Flammability Rating:UL94 V-0
• Insulation Color:Red
• Current Rating (Amps):1.5A
• Voltage Rating:230V
