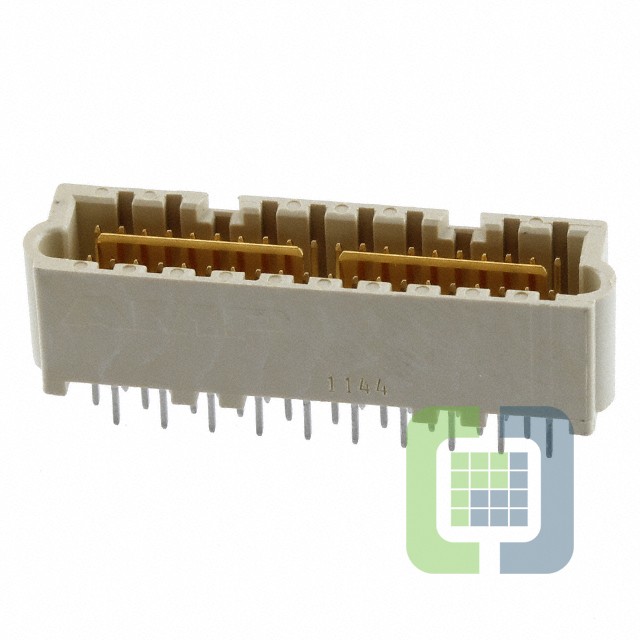

536280-1
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 40POS 1.27MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 536280-1 Datasheet
-
ECAD Model
- Share
In Stock: 200
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:Micro-Strip
- Package:Tube
- Part Status:Obsolete
- Connector Type:Plug
- Contact Type:Male Pin
- Pitch - Mating:0.050" (1.27mm)
- Number of Positions:40
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:-
- Contact Length - Post:0.095" (2.41mm)
- Overall Contact Length:-
- Insulation Height:0.340" (8.64mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:30.0µin (0.76µm)
- Contact Finish - Post:Tin-Lead
- Contact Material:Phosphor Bronze
- Insulation Material:Thermoplastic
- Features:Ground Bus (Plane)
- Operating Temperature:-65°C ~ 125°C
- Ingress Protection:-
- Material Flammability Rating:-
- Insulation Color:Natural
- Current Rating (Amps):Varies by Wire Gauge
- Voltage Rating:30VAC
