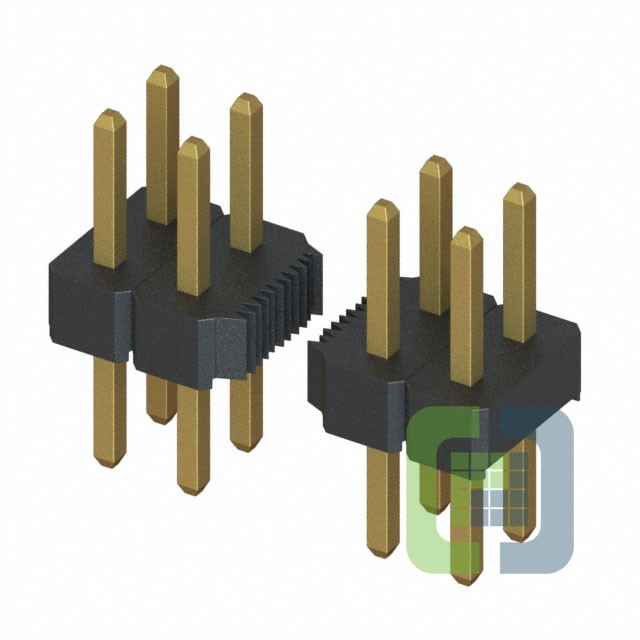

M22-2024005
Harwin
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 80POS 2MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet M22-2024005 Datasheet
-
ECAD Model
- Share
In Stock: 126
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:M22
- Package:Bulk
- Part Status:Obsolete
- Connector Type:Header, Cuttable
- Contact Type:Male Pin
- Pitch - Mating:0.079" (2.00mm)
- Number of Positions:80
- Number of Rows:2
- Row Spacing - Mating:0.079" (2.00mm)
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Unshrouded
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.138" (3.50mm)
- Contact Length - Post:0.134" (3.40mm)
- Overall Contact Length:0.331" (8.40mm)
- Insulation Height:0.059" (1.50mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:-
- Contact Material:Phosphor Bronze
- Insulation Material:Polyamide (PA6T), Nylon 6T
- Features:-
- Operating Temperature:-40°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):1A per Contact
- Voltage Rating:-
