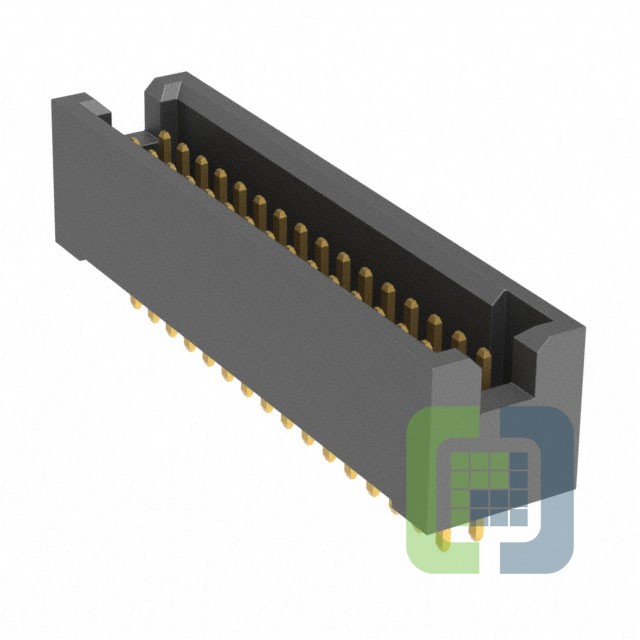

M50-4701645
Harwin
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 32POS 1.27MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet M50-4701645 Datasheet
-
ECAD Model
- Share
In Stock: 200
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:Archer M50
- Package:Tube
- Part Status:Obsolete
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.050" (1.27mm)
- Number of Positions:32
- Number of Rows:2
- Row Spacing - Mating:0.050" (1.27mm)
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:-
- Contact Length - Post:0.091" (2.30mm)
- Overall Contact Length:-
- Insulation Height:0.224" (5.69mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:Gold
- Contact Material:Copper Alloy
- Insulation Material:Liquid Crystal Polymer (LCP)
- Features:-
- Operating Temperature:-40°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):1A per Contact
- Voltage Rating:-
