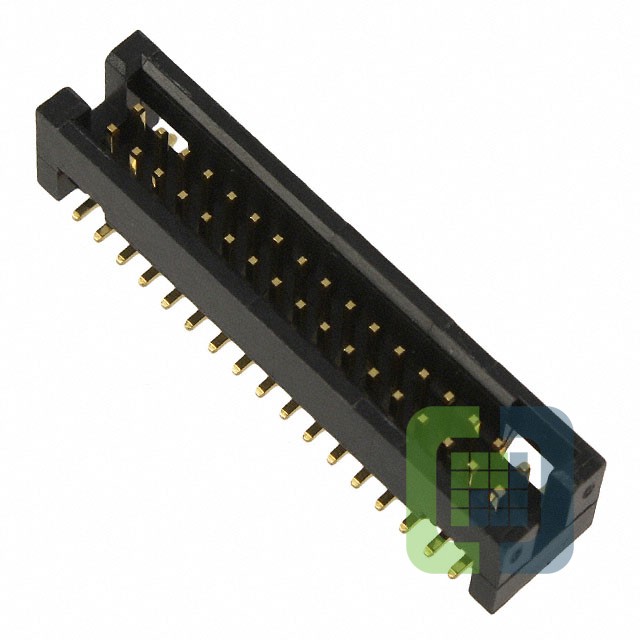

20021221-00034T8LF
Storage & Server IO (Amphenol ICC)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER SMD 34POS 1.27MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 20021221-00034T8LF Datasheet
-
ECAD Model
- Share
In Stock: 169
Can ship immediately
Pricing:
- 1$1.81279
- 1,224$1.81279
Quote It
Technical Details
- Series:Minitek127® 1.27mm
- Package:Tube
- Part Status:Obsolete
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.050" (1.27mm)
- Number of Positions:34
- Number of Rows:2
- Row Spacing - Mating:0.050" (1.27mm)
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Surface Mount
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.120" (3.05mm)
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:0.220" (5.60mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold, GXT™
- Contact Finish Thickness - Mating:30.0µin (0.76µm)
- Contact Finish - Post:Tin
- Contact Material:Copper Alloy
- Insulation Material:Thermoplastic
- Features:-
- Operating Temperature:-
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:-
