93254-172HLF
Storage & Server IO (Amphenol ICC)
- Lifecycle status Active
- RoHS RoHS Compliant

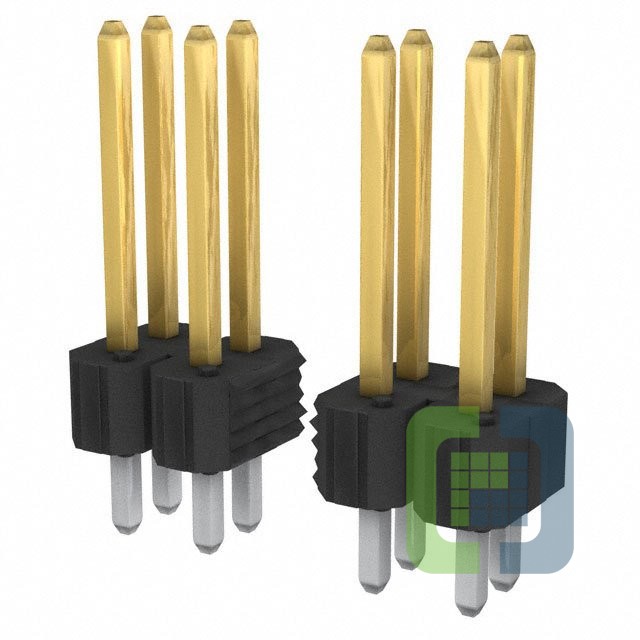

- DescriptionCONN HEADER VERT 72POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 93254-172HLF Datasheet
-
ECAD Model
- Share
In Stock: 101
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:BERGSTIK® II
- Package:Bulk
- Part Status:Obsolete
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:72
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Unshrouded
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.353" (8.97mm)
- Contact Length - Post:0.110" (2.79mm)
- Overall Contact Length:0.563" (14.30mm)
- Insulation Height:0.100" (2.54mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold or Gold, GXT™
- Contact Finish Thickness - Mating:30.0µin (0.76µm)
- Contact Finish - Post:-
- Contact Material:Phosphor Bronze
- Insulation Material:-
- Features:-
- Operating Temperature:-
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:-
