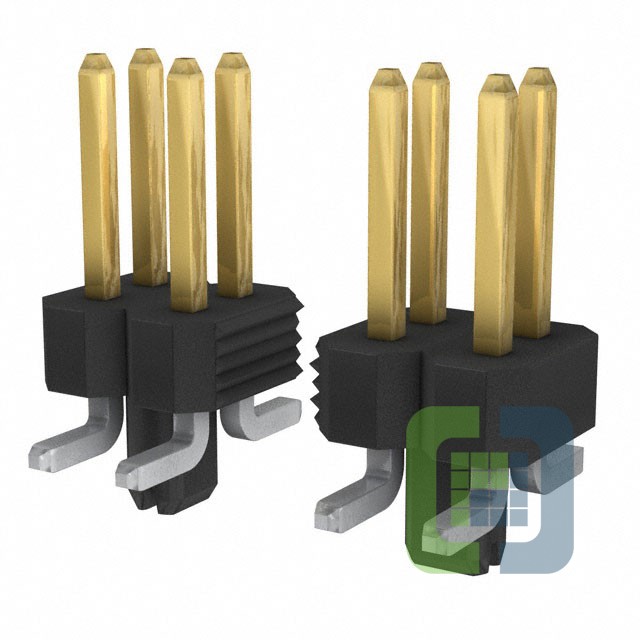

98401-101-42LF
Storage & Server IO (Amphenol ICC)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER SMD 42POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 98401-101-42LF Datasheet
-
ECAD Model
- Share
In Stock: 141
Can ship immediately
Pricing:
- 1$2.2304
Quote It
Technical Details
- Series:BERGSTIK®
- Package:Bag
- Part Status:Active
- Connector Type:Header, Breakaway
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:42
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Unshrouded
- Mounting Type:Surface Mount
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.230" (5.84mm)
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:0.084" (2.14mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold, GXT™
- Contact Finish Thickness - Mating:30.0µin (0.76µm)
- Contact Finish - Post:Tin
- Contact Material:Phosphor Bronze
- Insulation Material:Thermoplastic
- Features:Board Guide
- Operating Temperature:-
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:-
