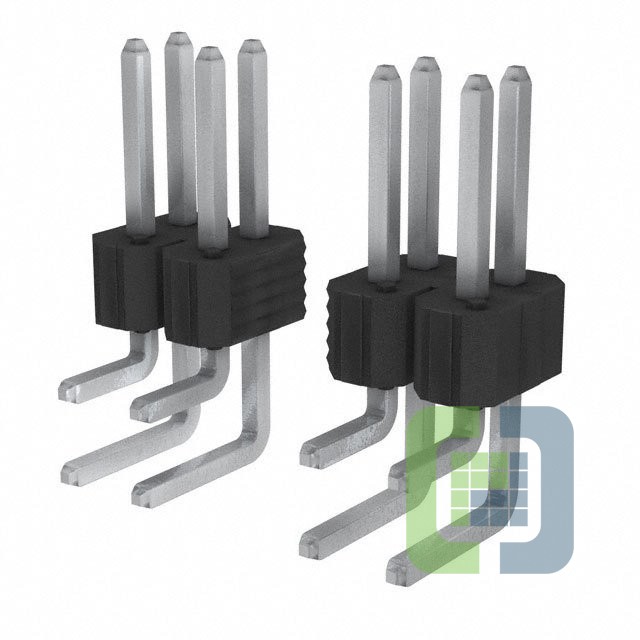

68020-418HLF
Storage & Server IO (Amphenol ICC)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER R/A 18POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet 68020-418HLF Datasheet
-
ECAD Model
- Share
In Stock: 119
Can ship immediately
Pricing:
- 1$0.50896
Quote It
Technical Details
- Series:BERGSTIK® II
- Package:Bag
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:18
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Unshrouded
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.230" (5.84mm)
- Contact Length - Post:0.095" (2.41mm)
- Overall Contact Length:-
- Insulation Height:0.190" (4.83mm)
- Contact Shape:Square
- Contact Finish - Mating:Tin
- Contact Finish Thickness - Mating:100.0µin (2.54µm)
- Contact Finish - Post:Tin
- Contact Material:Phosphor Bronze
- Insulation Material:-
- Features:-
- Operating Temperature:-
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:-
