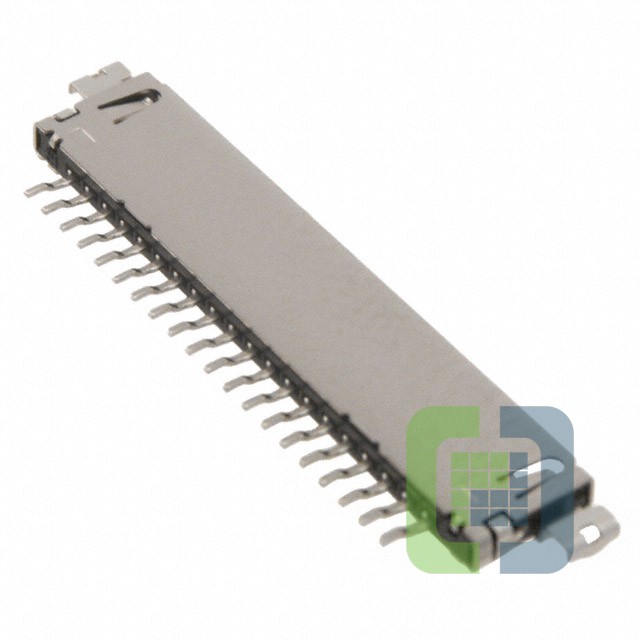

DF19KR-20P-1H(55)
Hirose
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER BRD EDGE 20P 1MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet DF19KR-20P-1H(55) Datasheet
-
ECAD Model
- Share
In Stock: 126
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:DF19
- Package:Tape & Reel (TR)
- Part Status:Active
- Connector Type:Receptacle, Reverse Pin
- Contact Type:Male Pin
- Pitch - Mating:0.039" (1.00mm)
- Number of Positions:20
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 3 Wall
- Mounting Type:Board Edge, Cutout; Surface Mount, Right Angle
- Termination:Solder
- Fastening Type:Friction Lock
- Contact Length - Mating:-
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:0.057" (1.45mm)
- Contact Shape:-
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:-
- Contact Material:Phosphor Bronze
- Insulation Material:Polyamide (PA), Nylon
- Features:Solder Retention
- Operating Temperature:-35°C ~ 85°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:100V
