DF3Z-6P-2V(51)
Hirose
- Lifecycle status Active
- RoHS RoHS Compliant

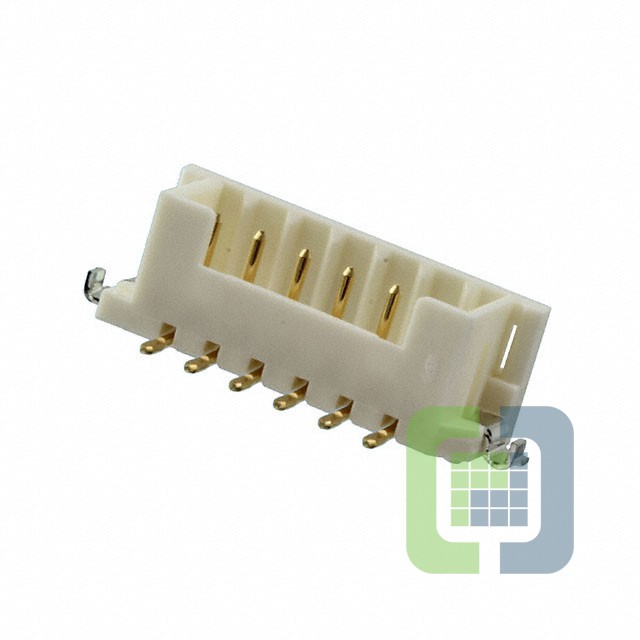

- DescriptionCONN HEADER SMD 6POS 2MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet DF3Z-6P-2V(51) Datasheet
-
ECAD Model
- Share
In Stock: 116
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:DF3
- Package:Tape & Reel (TR)
- Part Status:Discontinued at Digi-Key
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.079" (2.00mm)
- Number of Positions:6
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Surface Mount
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:-
- Contact Length - Post:-
- Overall Contact Length:-
- Insulation Height:0.232" (5.90mm)
- Contact Shape:Circular
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:-
- Contact Finish - Post:-
- Contact Material:Brass
- Insulation Material:Polyamide (PA), Nylon
- Features:Board Guide, Solder Retention
- Operating Temperature:-55°C ~ 105°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Beige
- Current Rating (Amps):3A
- Voltage Rating:-
