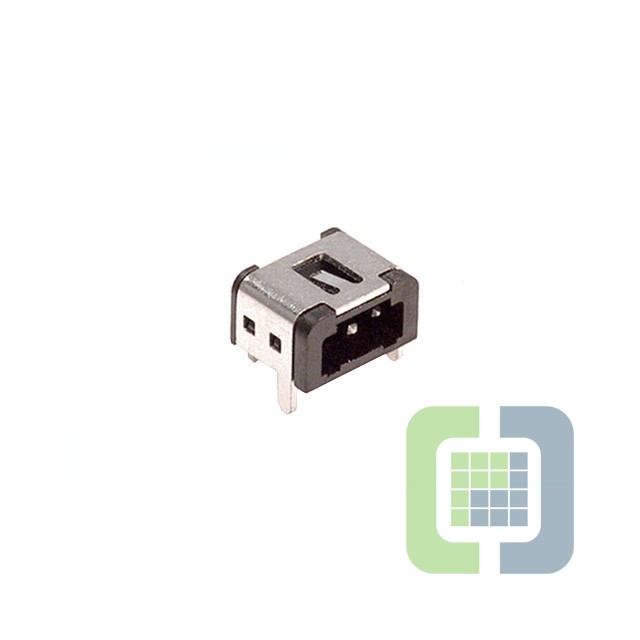

RP34L-5R-3PD(75)
Hirose
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER R/A 3POS 2.35MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet RP34L-5R-3PD(75) Datasheet
-
ECAD Model
- Share
In Stock: 168
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:RP34L
- Package:Tray
- Part Status:Obsolete
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.093" (2.35mm)
- Number of Positions:3
- Number of Rows:1
- Row Spacing - Mating:-
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole, Right Angle
- Termination:Solder
- Fastening Type:Latch Holder
- Contact Length - Mating:-
- Contact Length - Post:0.098" (2.50mm)
- Overall Contact Length:-
- Insulation Height:0.240" (6.10mm)
- Contact Shape:Square
- Contact Finish - Mating:Palladium
- Contact Finish Thickness - Mating:39.4µin (1.00µm)
- Contact Finish - Post:-
- Contact Material:Brass
- Insulation Material:Polyamide (PA), Nylon
- Features:Board Guide, Shielded
- Operating Temperature:-25°C ~ 85°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):5A
- Voltage Rating:-
