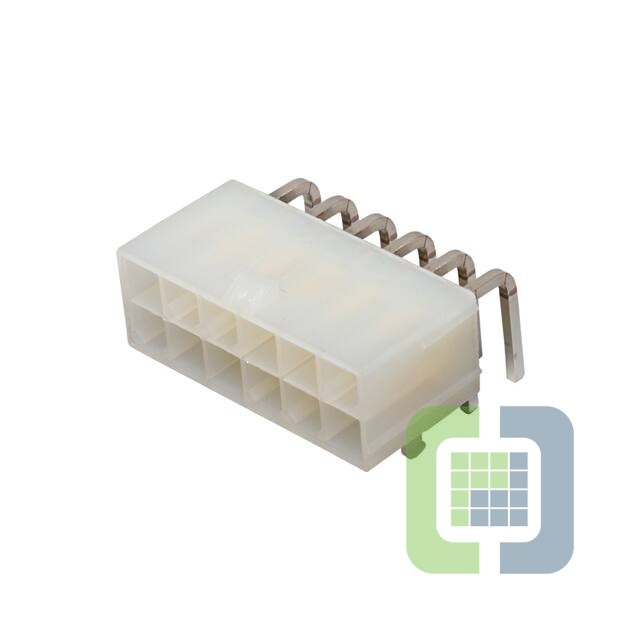

0026013119

Technical Details

• Series:Mini-Fit Jr 5569
• Package:Tray
• Part Status:Active
• Connector Type:Header
• Contact Type:Male Pin
• Pitch - Mating:0.165" (4.20mm)
• Number of Positions:12
• Number of Rows:2
• Row Spacing - Mating:0.165" (4.20mm)
• Number of Positions Loaded:All
• Style:Board to Cable/Wire
• Shrouding:Shrouded - 4 Wall
• Mounting Type:Through Hole, Right Angle
• Termination:Solder
• Fastening Type:Locking Ramp
• Contact Length - Mating:-

• Contact Length - Post:0.140" (3.56mm)
• Overall Contact Length:-
• Insulation Height:0.380" (9.65mm)
• Contact Shape:Square
• Contact Finish - Mating:Gold
• Contact Finish Thickness - Mating:15.0µin (0.38µm)
• Contact Finish - Post:Tin
• Contact Material:Brass Alloy
• Insulation Material:Polyamide (PA66), Nylon 6/6
• Features:Board Lock
• Operating Temperature:-40°C ~ 105°C
• Ingress Protection:-
• Material Flammability Rating:UL94 V-2
• Insulation Color:Natural
• Current Rating (Amps):13A
• Voltage Rating:600V
