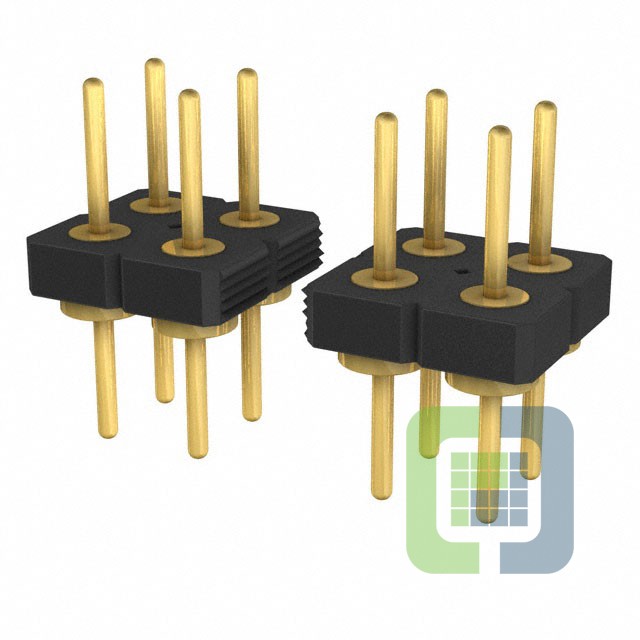

BDL-126-G-F
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 52POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet BDL-126-G-F Datasheet
-
ECAD Model
- Share
In Stock: 258
Can ship immediately
Pricing:
- 1$18.94
Quote It
Technical Details
- Series:BDL
- Package:Tube
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:52
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Number of Positions Loaded:All
- Style:Board to Board
- Shrouding:Unshrouded
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.122" (3.10mm)
- Contact Length - Post:0.125" (3.18mm)
- Overall Contact Length:0.332" (8.43mm)
- Insulation Height:0.085" (2.15mm)
- Contact Shape:Circular
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:20.0µin (0.51µm)
- Contact Finish - Post:Gold
- Contact Material:-
- Insulation Material:Polyamide (PA), Nylon
- Features:-
- Operating Temperature:-55°C ~ 125°C
- Ingress Protection:-
- Material Flammability Rating:-
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:-
