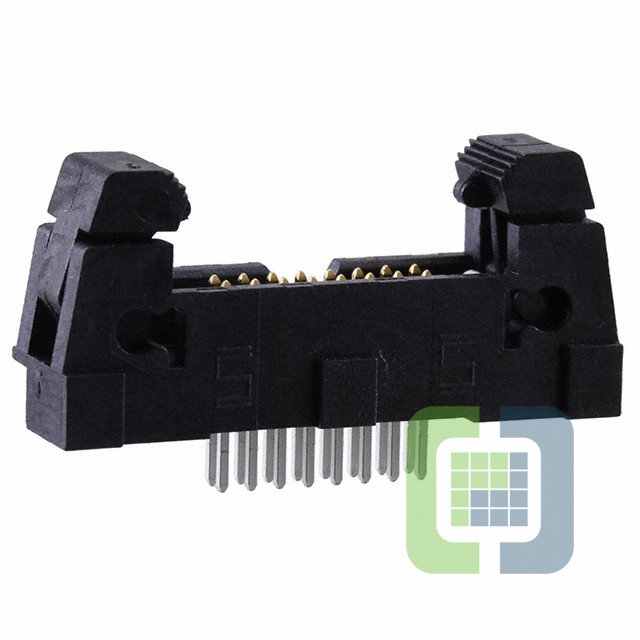

EHF-108-01-F-D
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 16POS 1.27MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet EHF-108-01-F-D Datasheet
-
ECAD Model
- Share
In Stock: 1,261
Can ship immediately
Pricing:
- 1$3.74
- 23$3.58482
- 115$2.98744
- 506$2.53932
- 1,012$2.16589
- 5,014$1.94184
Quote It
Technical Details
- Series:EHF
- Package:Tube
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.050" (1.27mm)
- Number of Positions:16
- Number of Rows:2
- Row Spacing - Mating:0.050" (1.27mm)
- Number of Positions Loaded:All
- Style:Board to Cable/Wire
- Shrouding:Shrouded - 4 Wall
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Latch Lock/Eject Hooks
- Contact Length - Mating:0.120" (3.05mm)
- Contact Length - Post:0.107" (2.71mm)
- Overall Contact Length:0.350" (8.89mm)
- Insulation Height:0.325" (8.25mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:3.00µin (0.076µm)
- Contact Finish - Post:Tin
- Contact Material:Phosphor Bronze
- Insulation Material:Liquid Crystal Polymer (LCP), Glass Filled
- Features:Keying Slot
- Operating Temperature:-55°C ~ 125°C
- Ingress Protection:-
- Material Flammability Rating:-
- Insulation Color:Black
- Current Rating (Amps):1.75A
- Voltage Rating:-
