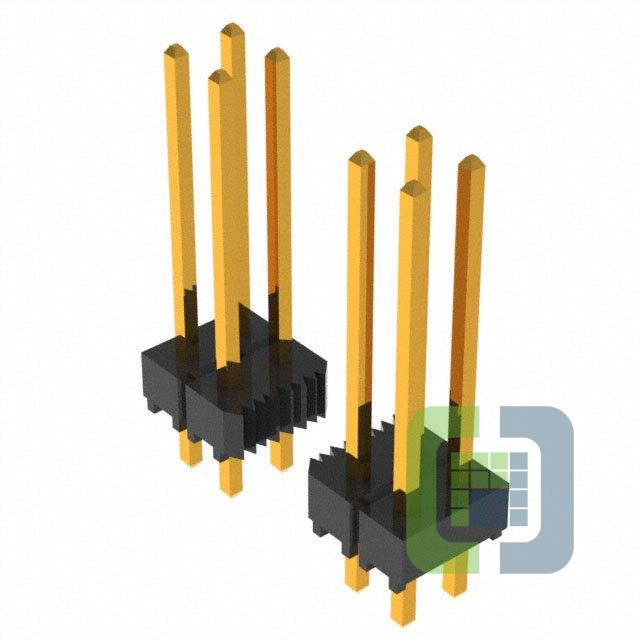

TSW-105-15-G-D
Samtec, Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HEADER VERT 10POS 2.54MM
- CategoryRectangular Connectors - Headers, Male Pins
- Datasheet TSW-105-15-G-D Datasheet
-
ECAD Model
- Share
In Stock: 1,082
Can ship immediately
Pricing:
- 1$1.32
- 10$1.1578
- 100$0.99917
- 500$0.8175
- 1,000$0.72668
- 5,000$0.63584
- 10,000$0.60405
Quote It
Technical Details
- Series:TSW
- Package:Bulk
- Part Status:Active
- Connector Type:Header
- Contact Type:Male Pin
- Pitch - Mating:0.100" (2.54mm)
- Number of Positions:10
- Number of Rows:2
- Row Spacing - Mating:0.100" (2.54mm)
- Number of Positions Loaded:All
- Style:Board to Board or Cable
- Shrouding:Unshrouded
- Mounting Type:Through Hole
- Termination:Solder
- Fastening Type:Push-Pull
- Contact Length - Mating:0.520" (13.21mm)
- Contact Length - Post:0.110" (2.79mm)
- Overall Contact Length:0.730" (18.54mm)
- Insulation Height:0.100" (2.54mm)
- Contact Shape:Square
- Contact Finish - Mating:Gold
- Contact Finish Thickness - Mating:10.0µin (0.25µm)
- Contact Finish - Post:Gold
- Contact Material:Phosphor Bronze
- Insulation Material:Polybutylene Terephthalate (PBT)
- Features:-
- Operating Temperature:-55°C ~ 125°C
- Ingress Protection:-
- Material Flammability Rating:UL94 V-0
- Insulation Color:Black
- Current Rating (Amps):-
- Voltage Rating:-
